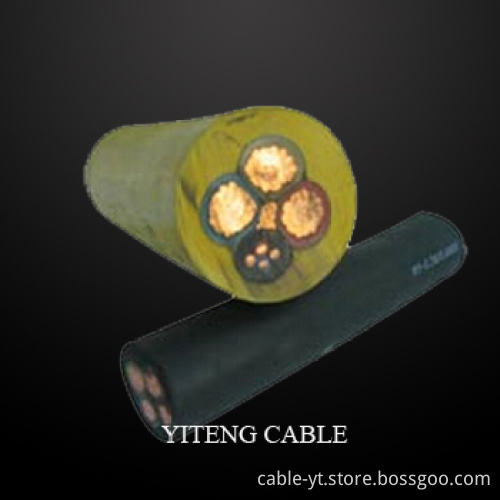

Flexible Rubber Sheath Cable for General Purposes







Standard of Product



The cables are manufactured according to the standard of GB 5013-2008 idt.IEC60245-2004, at the same time, they are also can be manufactured according to the standard of IEC, BS, DIN and AEIC.



Bending Radius



The bending radius of cable should not be less than 6 times of the cable`s OD







Usage



This cable is suitable for rated AC voltage 450/750V or below domestic appliances, power-operated tools and various portable electric equipments.



Flexible Rubber,sheathed Cable for General Purposes,Flexible Rubber Cable for Welding Machine







Operating Characteristics



A) YZ specification rated voltage Uo/U IS 300/500V, YC model is 450/750V



B) Max. permissible operating temperature of the conductor is 65℃



C)W specification cable has the property of durability and suitable for outdoor touching of greasy dirt.



D) ZR specification cable has the property of flame-retardant.







Types and Description



TYPES Name Main Usage

YQ

YQW light type rubber sheathed flexible cable Used for light portable electric equipment and tools

YZ

YZW middle type rubber sheathed flexible cable Used for various portable electric equipment and tools

YC

YCW heavy type rubber sheathed flexible cable Used for various portable electric equipment ,which can bear larger mechanical force
