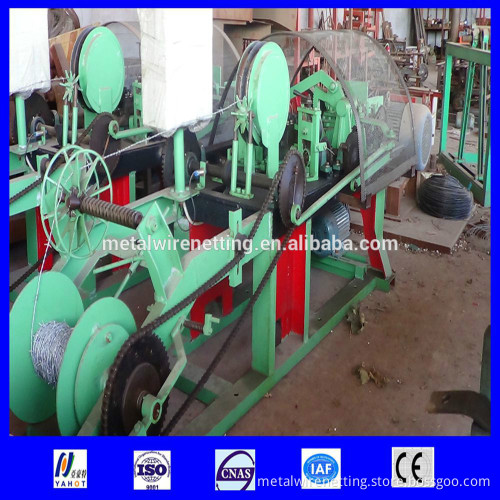

best price barbed wire machine

best price Barbed Wire  Machine

Specifications:
Stand Wire and point wire 12/12 SWG. VIZ. 2.5.-2.8/2.5.-2.8 m.m. diameter.

Tensile Strength
H.B. Fully not dipped galvanized wire with under 30 kg. F/MM to 50 kg. F/MM.       Capacity / Production
6 Qtl./8 Hr. shift exclusive maintenance houlage for 12/12 SWG wire keeping 140 to 220 Barbs/Min. with length to coil maximum 400 meters and weight per bundle 40/50 Kg. (Bundle size 16" X 10" Width)

Barb Spacing
3" to 4" pitch also adjustable with additional gears in winding unit whichever could be supplied only under special demand.

Quality
Our major emphasis are upon its adjust ability of pars and easy maintenance. Operator has an easy approach in setting all arms, cutters by making the machine parts fool-proof. It ensures easier dismantling, assembling, loading unloading as well as consequent view over flow of formed wire. All the adjustable parts are altogether accessible and machine standards. It requires 5hp slow speed, 3hp 50c/s squirrel cage induction motor with reversible Stater which is not supplied with the machine. The machine is designed in its heavy structure using closed grain cast iron and steel in EN-36. All the gears are processed by bevel generator and hobbing. The machine is 1200 kg. in weight (App.) exclusive of pay - off stands.
