Good Quality Best Factory Price China Automatic Crimped Wire Mesh Weaving Machine Price Crimped wire mesh machinery

    Detailed Description of Crimped wire mesh machine   1. Common introduction of crimped wire mesh machine    The crimped wire mesh machine also named the crimping and cutting machine can adopt new operation methord, when replace a set of gear mould without to replace the guide wheel.save time and operation more flexible. The mesh made by this machine is normally used as mine sieving mesh, decorative mesh.The mine sieving mesh is widely used in the coal and quarrying industry. Our machines have been sold to America, France, Japan, Iran, India and so on.   2. Feature and usage of crimped wire mesh machine    This machine is a universal-type model which is designed to adapt to market demand, the production can texture similar network at home and abroad ,absorbing the advantages of machine, using a straight line shuttleless shaft weft insertion, Jingwei cotton, weaving a molding, automatic weaving, the machine is simple, low noise, high production efficiency,it’s product is widely used in petroleum, chemical, mining and other fields of solid-liquid filter, filter.   3. Parameters of crimped wire mesh machine     A) Full Automatic Crimped Wire Mesh Weaving Machine

Wire Dia. (mm)

Weaving width (m)

Weight (Ton)

Size LxWxH (m)

Motor Details

Wire feed speed

Wire Dia. (mm)	Weaving width (m)	Weight (Ton)	Size LxWxH (m)	Motor Details		Wire feed speed
				Driving power (KW)	Power (V)
0.2-2.0	2.5	2	2.2*4.5*2.3	1	220 or 380	20-30 times/minute

    B) Semi-Automatic Crimped Wire Mesh Weaving Machine

Item
Maximum Width(m)	Max3.0
Mesh size(mm)	2-5
Wire diameter(mm)	3x3-100x100
Production speed(times/minute)	30
Rated voltage	380V,50HZ
Motor power(KW)	5.5
Overal diamension(mm)	4500x2200x1700
Weight(T)	2.5

Main Parameter for hydraulic type:

Item
Maximum Width(m)	3.0
Mesh size(mm)	20x20-100x100
Wire diameter(mm)	5-14
Production speed(times/minute)	20
Rated voltage	380V,50HZ
Motor power(KW)	7.5
Overal diamension(mm)	4500x3000x1800
Weight(T)	3.0

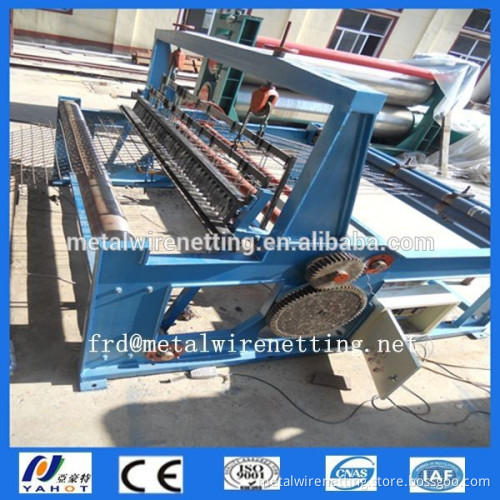

      4. Photos of crimped wire mesh machine
