  Detailed Description of Rib Lath   (1)Metal Rib Lath is widely used as plaster backing on ceilings, walls and stud partitions. Rib Lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face. Manufactured in galvanized steel to BS EN 10143:1993 with quality Zinc coating G60. Complies with BS 1369 Part 1:1987 specification for expanded metal and ribbed lathing.

Code	Width	Length	Thickness	Materials
RB610	600mm	2500mm	0.30mm	Galv.
RB610	600mm	2500mm	0.40mm	Galv.
RB610	600mm	2500mm	0.50mm	Galv.

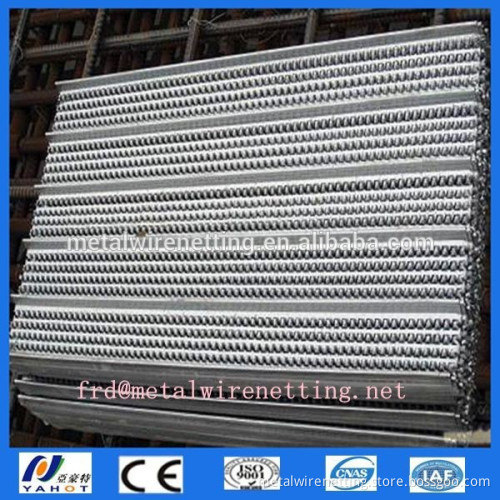

  Other thickness and length is available to order.       (2)High Rib Formwork has been widely applied to concrete structure of projects. It has better stress strength and free shape, it is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks storage tanks, skyscrapers, ocean engineering and irregular or curved shaped.

Rib Height	Width	Length	Thickness	Materials
15mm	445mm	2000mm-2500mm	0.30mm-0.50mm	Galv.
20mm	445mm	2000mm-2500mm	0.30mm-0.50mm	Galv.
