Economical and Practical expanded metal machine

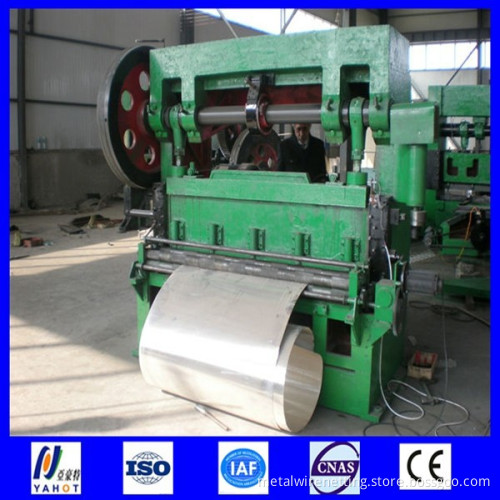

    Economical and Practical expanded metal machine     ♣Introduction about machine This machine adopts the mature technologies of the past as well as new technologies such as: full-automatic lubricating, NC stepping motor feeding, etc. It has good effect, controllability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. It is environmental production and energy saving.                                                                                                                                                       It is suitable for the material as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloysheet, copper sheet, Nickel sheet.     ♣ Finished product usage Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.     ♣ technical parameters

Type	25-6.3	25-16	25-25	25-63	25-160
Max.Thickness (mm)	1	1	1.5	4	8
Punching Width (mm)	500	1000	1250	2000	2500
Slide plate trip Times	180	150	150	70	45
Distance offeeding (mm)	0-1.15	0-1.2	0-1.2	0-7	0-13
Max.Lenght of Mesh (mm)	20	25	30	100	200
Motor (kw)	2.2	3	4	11	22
Total Weight (T)	0.95	2	3	10	20
Measurement (m)	9.5*5.7*1.78	1.8*1.32*1.55	1.94*1.6*2.01	2.4*3.5*2.3	4.5*2.8*3.0
