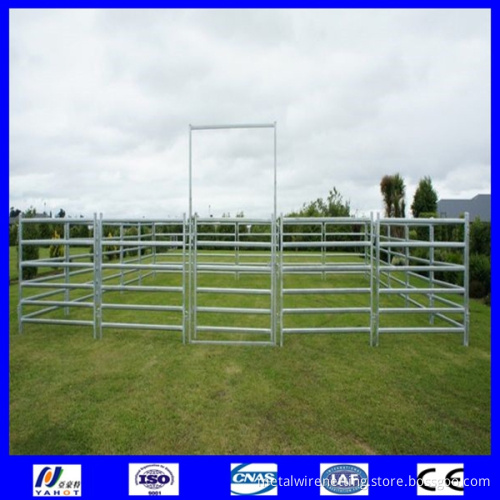

galvanized heavy duty horse/cattle steel panels

galvanized heavy duty horse/cattle steel panels

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Horse Fence Panel Advantages 1.Our livestock cattle panel meets Australia standard, and is very popular in the Australian market 2.the metal panels can be recycled. 3.the metal rails are hot dip galvanized before welding, thus has strong capability of anticorrosive. 4.we are a direct china factory and manufacturer, and can provide you with high quality and best prices. 5.we have more than 8 years exporting experience,and our products are in hot sale in australian markets,uropean countries, america markets etc. The horse fence panel usually have 3 type of pipe. the detial as the follows 1 round style

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	more than 15 microns
Height x Length	1800mm x 2100mm
vertical pipe	32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness
horizontal rails	32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

2>square tube style

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	mor than 15 microns
HeightxLength	1800mm x 2100mm
vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
horizontal rails	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint

3> oval tube style

material	pre hot dipped galvanized steel pipe
finishing(zinc coating)	mor than 15 microns
HeightxLength	1800mm x 2100mm
vertical pipe	50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness
horizontal rails	30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails)
Welding	Fully welded post brackets
welds	bull bars are fully welded, each weld is protected with epoxy paint
