Gabion Baskets

Specifications Gabion Mesh Box

1.Gabion Box

2.Stone Cages

3.Hexagonal Wire Mesh Fence

4.Gabion Mesh

  Detailed Description of Hexagonal Gabion Mesh Box     Introduction of Gabion Mesh Box:    A double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects   Applications of  Gabion Mesh Box:
1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
8. Port project
9. Keep off dust wall
10.roadway protection.   Specifications Of Gabion Mesh Box:

Opening  (mm)	Wire Diameter(Metal Wire)    (mm)	Wire Diameter (PVC Coate)/ Inner/Outside(mm)
60X80	φ2.0-2.8	φ2.0/3.0-2.5/3.5
80X100	φ2.0-3.2	φ2.0/3.0-2.8/3.8
80X120	φ2.0-3.2	φ2.0/3.0-2.8/3.8
100X120	φ2.0-3.4	φ2.0/3.0-2.8/3.8
100X150	φ2.0-3.4	φ2.0/3.0-2.8/3.8
120X150	φ2.0-4.0	φ2.0/3.0-3.0/4.0



Item	Wire diameter	Zinc coating	Tensile strength
Mesh wire	2.7±0.05mm	240±10 g/m2	485 MPa max
Selvedge wire	3.4±0.05mm	260±10 g/m2	485 MPa max
Binding wire	2.2±0.05mm	220±10 g/m2	515 MPa max
Test according to ASTM641

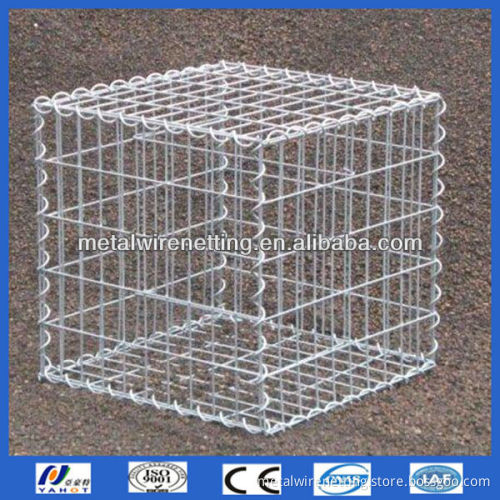

    Photos Of Gabion Mesh Box:
