PVC and Galvanized Hexagonal Gabion Mesh Machine

PVC and Galvanized Hexagonal Gabion Mesh Machine  Product Description   Gabion mesh Application
Gabion mesh are widely used in oil, construction, raising, chemical industry warming piping and etc. It is also used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,road, bridge and civil engineering. It is one of the best against flooding material.
  It can weave 4.0mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style
4300mm Max Mesh Weaving Width Heavy Duty Hexagonal Gabion Machine for 3.5mm Wire, 22kw
Three Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System

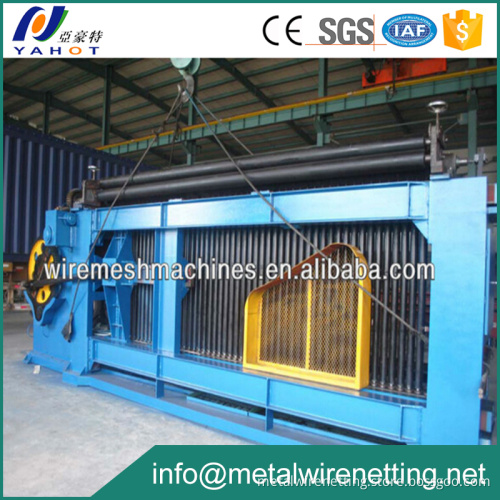

 Gabion Machine Introduction:
Our machine adapts PLC frequency control after being improved.
the advantages for PLC frequency control for you .
1.It is touch screen control.
2.It has the function of frequency control of motor speed according to different of wire diameter.
3.It has buffer function when speed increase or decrese in very short time.
4.It can count output every day or every year.
5.It can save about 30% energy.

Specification (mm)	Max Net Breadth(mm)	Max Thread Diameter (mm)	Twisting  Model	Main Shaft Ratary Speed	Motor Power(KW)	Theoretical Production Speed
						Twisting (Mesh/min)	m/h	Diamention (mm)	Weight (T)
60X80	2300	2.8	double	25	11	25	165	5200X1400X2400	13
	3300	2.8	double	25	15	25	165	6200X1400X2400	14
	4300	2.8	double	25	22	25	165	7200X1400X2400	15
80X100	2300	3	double	25	11	25	195	5200X1400X2400	13
	3300	3	double	25	15	25	195	6200X1400X2400	14
	4300	3	double	25	22	25	195	7200X1400X2400	15
100X120	2300	3.2	double	25	11	25	225	5200X1400X2400	13
	3300	3.2	double	25	15	25	255	6200X1400X2400	14
	4300	3.2	double	25	22	25	225	7200X1400X2400	15
