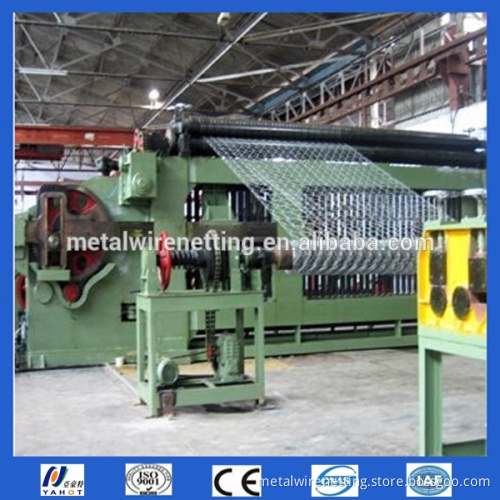

Automatic Heavy Duty Gabion Stone Cage Making Machine

             Automatic Heavy Duty Gabion Stone Cage  Making Machine   Product Description     1 mesh size:60*80mm,80*100mm,100*120mm
2 diameter of wire:2-4mm
3 width:<=4300mm automatic gabion mesh machine   Heavy duty hexagonal mesh machine Hexagonal netting machine   The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.   Specifications as below:

Model	Mesh(mm)	Diameter of wire(mm)	Width(mm)	Crank RPM	Speed (m/min)	Voltage (V)	Engine power(kw)
JK-GM 60×80	60×80	2.2-2.8	2.4	30	≥1.5	380	11
JK-GM80×100	80×100	2.2-3.5	2.4	30	≥2	380	11
JK-GM100×120	100×120	2.2-3.8	2.4	30	≥2.4	380	11
JK-GM60×80	60×80	2.2-2.8	4.2	30	≥1.5	380	22
JK-GM80×100	80×100	2.2-3.5	4.2	30	≥2	380	22
JK-GM100×120	100×120	2.2-3.8	4.2	30	≥2.4	380	22
