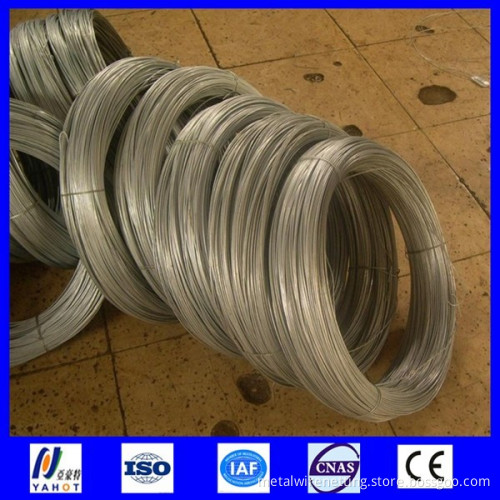

Galvanized Iron Wire/ Electro Galvanized Wire/ Binding Wire

    Galvanized Iron Wire/ Electro Galvanized Wire/ Binding Wire     Product Description     1.wire gauge:   BWG6-22 (5.0MM-0.7MM)    2.Zinc coat:  10-350g/m2
3.Tensile strength:    35-55kgf/mm2, 350-550N/mm2.
4.Packing :   10-800kg/coil .galvanized wire packed with plastic inside and gunny outside/ weave outside.
5.Application:  alvanized wire widely usedin construction binding, wire mesh,    expressway fencing, chain link fence ,handicrafts and other fields.     6. Production Process of Galvanized Iron Wire:
  wire drawing :   acid washing:   zinc feeding:

Galvanized Wire

Standard Wire Gauge

Wire Diameter

BWG

8#

9#

10#

11#

12#

13#

14#

15#

16#

17#

18#

19#

20#

MM

4.10

3.70

3.40

3.00

2.80

2.50

2.00

1.80

1.62

1.40

1.22

1.02

0.91

0.25mm - 5.0mm

BWG

21#

22#

23#

24#

25#

26#

27#

28#

29#

30#

31#

32#

33#

MM

0.81

0.71

0.62

0.56

0.51

0.46

0.42

0.38

0.35

0.32

0.29

0.27

0.25

Zinc Coating

Electro Galvanized : 10g/m2-25g/m2

Hot Dipped Galvanized : 50g/m2-260g/m2

Tensile Strength

35KG-55KG/mm2 or 350N-550N/mm2

Characteristic

High,firmed and well-proportioned Zinc Coating,slippery surface,

super in corrosion resistance,the single roll wire without any inter-cuts or breaks

Application

uses in the weaving of wire mesh and reprocess,as binding wire in daily life

widely used in construction,industry, agriculture and stockbreeding etc.

Package

Coils in 0.1kgs-1000kgs are available

Inside by PVC strips,outside by white weave bag

Inside by PVC strips,outside by gunny

Small coil in carton then pallet,in spools then carton

Special packages are available upon request.
