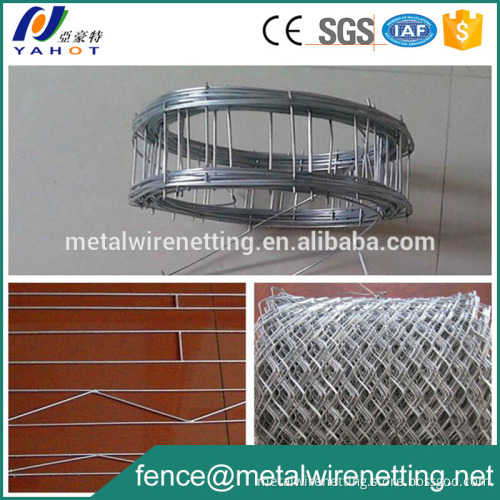

Galvanized Welded Brick Force Mesh

 Galvanized Welded Brick Force Mesh     Product Description   Expanded Metal Brick Force in Coils    1.Material: Galvanized steel plate   2.Width: 63mm, 100mm, 150mm, 200mm, 300mm   3.Mesh opening: 16mm x38mm, 15x25mm   4.Strand Width: 1.0-1.5mm    5.Mesh Length is from 1.0m to 100m

Thickness	Width	Length	Recommended application
0.35-0.5mm	63mm	10-100m	For 100mm wall
0.35-0.5mm	120mm	10-100m	For 150mm wall
0.35-0.5mm	175mm	10-100m	For 200mm wall
0.35-0.5mm	225mm	10-100m	For 250mm wall

    Brick Force Welded Wire Mesh in Coils

Width	Length	Wire Diameter
75mm	20m	2.2mm
150mm	20m	2.2mm
230mm	20m	2.2mm
57mm	20m	2.8mm
75mm	20m	2.8mm
100mm	20m	2.8mm
150mm	20m	2.8mm
230mm	20m	2.8mm

  Brick Force Welded Wire Mesh in Sheets

Brick force welded wire mesh
Wire diameter mm	Longitude wire spacing mm	Cross wire spacing mm	Width mm	Length mm
2.5	30	200	40	1000
3.0	50	100	65	2000
3.5	60	240	200	2950
3.8	100	400	100	2950
4.0	150	400	200	3000
It can be customized.
