2015 conveyor belt vulcanizing machine

  Detailed Description of Conveyor Belt Mesh Machine   (1) Introduction of conveyor belt mesh machine   Conveyor Belt Mesh Machine   Conveyer Belt Mesh machine
Conveyor belt has almost all the advantages offered by the metal wire woven mesh belts. With deeply bended linked string, the location of the various screws are correctly positioned, all these have enabled the avoiding of the surface deformation, thus make it suitable for mechanical streamlined production. It is mainly used in electronics, glass plant, drying equipment, rubber plants, etc. Main technical parameter Outside size:L*W*H:3200mmx750mmx850mm Maximum aperture of weaving:200x200mm  Minimum aperture of weaving:4x4mm The maximum line diameter of weaving:6.0mm The minimum line diameter of weaving:0.4mm A-tape power 1.5kw B tape power:0.8kw
(2) Parameters of conveyor belt mesh machine

diameter	othor diameter	Model/m	other Model /m
4	6	33(radix)	40(circle)
3.5	3.5	33(radix)	40(circle)
2.8	2.8	52(radix)	60(circle)
2	2	57(radix)	71(circle)
2.8	2.8	72(radix)	80(circle)
2.8	3	92(radix)	100(circle)
2.8	2.8	105(radix)	118(circle)
2.8	2.8	60(radix)	138(circle)
1.6	1.6	72(radix)	80(circle)
1.6	1.6	105(radix)	118(circle)
1.6	1.6	125(radix)	138(circle)
1.6	1.6	158(radix)	158(circle)
1.2	1.2	92(radix)	100(circle)
1.2	1.2	105(radix)	118(circle)
1.2	1.2	92(radix)	138(circle)
1.2	1.2	158(radix)	158(circle)
0.9	0.9	158(radix)	158(circle)

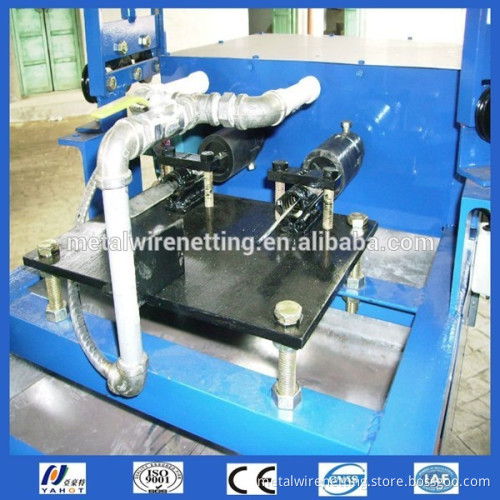

(3) Photos of conveyor belt mesh machine
