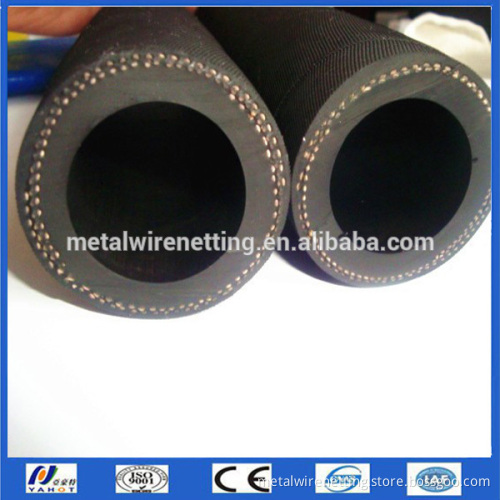

Multilayer Sand Blasting rubber Hose

Multilayer Sand Blasting Rubber Hose   Other name: Sand blast rubber hoses, Flexible Reinforced sand blast Hoses, Sand blast hose.
Tube: high quality wear-resistance rubber.
Reinforcement: multilayer spiral fabric reinforcement
Cover: high quality rubber material is is good at anti-aging and wear-resistance.
Applications: For sand-blasting of and eliminating rust on the surface of metal parts.

ID		OD		WP		BP		Min.bend radius	ply	weight
mm	inch	mm	inch	Mpa	bar	Mpa	bar	mm	B	kg/m
16	5/8"	26	1"	2	20	6	60	240	2	0.5
20	3/4"	32	1-1/4"	2	20	6	60	285	2	0.6
22	7/8"	34	1-2/5"	2	20	6	60	330	2	0.9
25	1"	38	1-1/2"	1.6	16	4.8	48	375	2	1
31.5	1-1/4"	48	2"	1.6	16	4.8	48	480	2	1.2
40	1-3/5"	50	2"	1.2	12	3.6	36	600	2	1.5
45	1-3/4"	62	2-1/2"	1	10	3	30	675	2	1.7
50	2"	65	2-1/2"	1	10	3	30	765	2	1.9
64	2-1/2"	78	3"	1	10	3	30	960	2	2.7
76	3"	96	4"	1	10	3	30	1140	3	3.3
