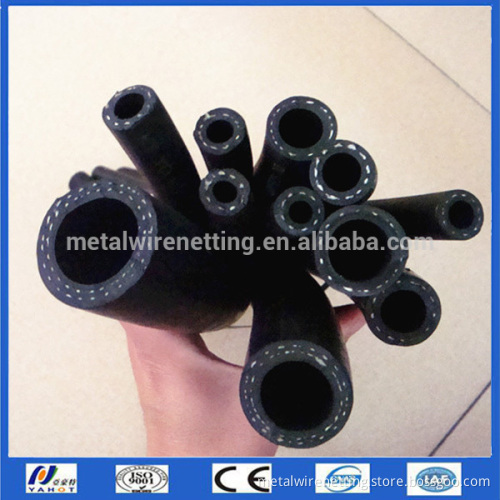

Compressor Rubber Air Hose

Compressor Rubber Air Hose Product Description     Applications: Widely used for conveying of air, inert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: High tensile synthetic yarn, single/double yarn braided or spiraled.
Cover: NR & SBR synthetic rubber, black, red, yellow and blue in colors etc.
Characteristics: Abrasion resistant, weather resistant and zone resistant. It’s of pressure bearable, flexible, light in weight, anti-bending, less distortion and nice smooth surface.
Standard length: 50m, 100m
Temperature range:-20°C~+60°C(-4°F to +140°F)

Inside	I.D.	O.D.	working pressure	Burst pressure	Bend radius	Weight	Length
inch	mm	mm	Mpa	Mpa	mm	kg/m	m/roll
1/4"	6	15.5	2.0	6.0	102	0.308	100
5/16"	8	17.5	2.0	6.0	114	0.324	100
3/8"	10	19.5	2.0	6.0	127	0.4	100
1/2"	13	23	2.0	6.0	178	0.548	100
5/8"	16	26	2.0	6.0	203	0.6	100
3/4"	19	30.5	2.0	6.0	241	0.76	100
1"	25	38	2.0	6.0	305	1.08	100
1-1/4"	32	46	2.0	6.0	419	1.28	50
1-1/2"	38	56	2.0	6.0	500	1.72	50
2"	51	70	2.0	6.0	630	2.9	50
