EPS Foam Machinery

Specifications EPS Blocking Machine

1. PLC English Touch Screen

2. CE Certification

3. Lifetime Service

4. Engineers Installation

  Detailed description Of EPS Foam Block Making Machinery    (1) General Introduction of EPS Foam Block Making Machinery     1. Welded by high-quality profile steel with aging heating treatment: high strength, nondeformation and high resistance to the expansive force from high-density products. Controlled by PLC with a full computer touch screen displayer: realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, demoulding and extruding-out of finished products. 3.the surface of the mould is made of special aluminum alloy panel which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.The machine is integrated with overseas advanced and special penetrating and heating techniques for shaping. 5.The machine is integrated with a highefficiency vacuum pump cooling device with a strong penetrability,favorable adhesivity, low consumption of steam, high speed of shaping and low water content so as to ensure theuniformity of inside and outside of the thickened foam plastic panel, which highly increased production efficiency.      (2 ) Parameters of EPS Foam Block Making Machinery

Model	EPS6000	EPS-6000Z
Mold Size(mm)	6120*1230*1050	6080*1230*630
Mold Vol.(M3)	7.96	4.71
Products Density/Proportion(kg/m3)	6-35	6-40
Capacity(Piece/h)	2-12	2-12



Model	EPS8000Z	EPS8000Z/B
Mold Size(mm)	8100*1240*1040	8100*1230*630
Mold Vol.(M3)	10.46	6.28
Products Density/Proportion(kg/m3)	6-25	6-40
Capacity(Piece/h)	2-12	2-12

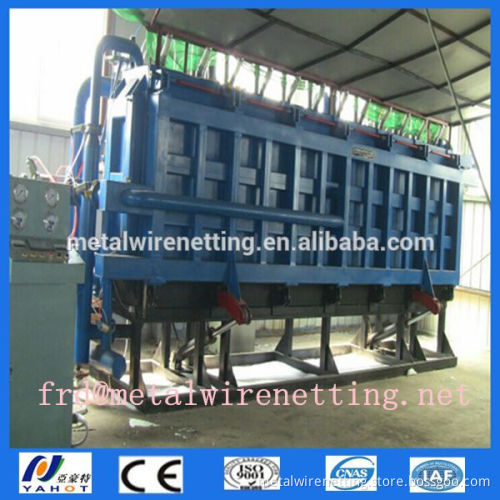

(3 ) Photos of EPS Foam Block Making Machinery
