Full Automatic Brick Force Welding Roll Mesh Machine Production Line

    Automatic Brick Force Wire Mesh Welding Machine     1. Instruduction of Automatic Brick Force Wire Mesh Welding Machine   This operation is accurate, it has stable function, firm welded point and without tracks. Not only welding speed is fast but also it is easy to learn and operate. The stop motor controls fallen wefts structure and drawing materials are automatic so it is even and accurate, the edge of mesh is regular, it is unnecessary to slice the side. Drawing mesh adopts the device with the elastic tension link and fixing the mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within the range. It is automatic to make mesh in pieces and in rolls.     2. Parameters of Automatic Brick Force Wire Mesh Welding Machine

Wire diameter	1.6-2.5mm	Rated voltage	380v
Spaces of cross wires	65mm,115mm,165mm	Space of line wires	250-300mm
Rated electrical power	72kva	NCumber of electrodes	8
Overall dimension	6*1.5*1.5m	Welding speed	45

    3.Features of Automatic Brick Force Wire Mesh Welding Machine   1). This kind machine is used to make wire mesh for brick reinforcement and it is widely in Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but also it is easy to learn and operate. 2). Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil and straightened by wire straightening wheel. Line wire distance can be adjusted by moving the electrode and cross wire distance can be adjusted by operating the PLC panel. And the mesh pulling device is also driven by step motor which make the aperture accurate.  3). Both machine could produce three or four pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
4). The available wire is black wire or galvanized wire. 5). Finished product can be in roll or in panel.    4. Components of Automatic Brick Force Wire Mesh Welding Machine
Main welding part                                   1unit
Mesh coiling part                                    1unit Auxiliaries needed:
Wire straightening and cut machines   2 unit Line wire straightening rollers               1unit Line wire payoffs                                     6unit

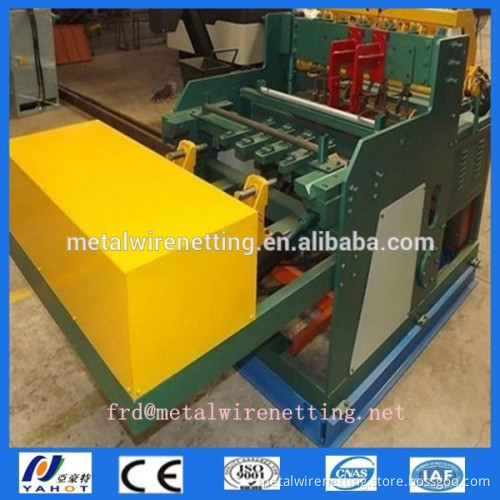

Electric cutting tool                                 1unit   5. Photo of Automatic Brick Force Wire Mesh Welding Machine          We have trade assurance 22000 USD!!  Welcome you to learn more details from us.
