Manufacturer Steel Bar Grating

  Galvanized Steel Bar Plate Grating   Steel bar grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance. Steel grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environmental projects. Can also be customized according to customer requirements.

Specification list of Steel Grating
Series No	Vertical Bar Spacing	Horizontal Bar Spacing	Specification of Supporting Flat Steel Width X Thickness (mm) (mm)
			20×3	25×3	32×3		40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100		G205/30/100	G255/30/100
		50	G203/30/50	G253/30/50	G323/30/50	G403/30/50		G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100		G205/40/100	G255/40/100
		50	G203/40/50	G253/40/50	G323/40/50	G403/40/50		G205/40/50	G255/40/50
3	60	50	-	G253/60/50	G323/60/50	G403/60/50		G205/60/50	G255/60/50
			32×5	40×5	45×5	50×5		55×5	60×5
4	30	100	G325/30/100	G405/30/100	G455/30/100	G500/30/100		G555/30/100	G605/30/100
		50	G325/30/50	G405/30/50	G455/30/50	G500/30/50		G555/30/50	G605/30/50
5	40	100	G325/40/100	G405/40/100	G455/40/100	G500/40/100		G555/40/100	G605/40/100
		50	G325/40/50	G405/40/50	G455/40/50	G500/40/50		G555/40/50	G605/40/50
6	60	50	G325/60/50	G405/60/50	G455/60/50	G500/60/50		G555/60/50	G605/60/50

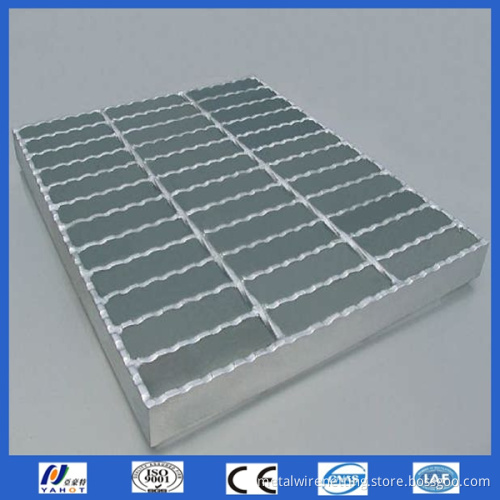

     (1)Photos of Galvanized Steel Bar Grating     (2) Different Colors PVC Coated Steel Bar Grating     (3) The Process of Manufacturering Steel Bar Plates Grating     (4) Loading Steel Bar Grating to the Container For Our Foreign Clients       (5) Applications of Our Steel Bar Grating       Our Services      Sales Manager : Ms Li Xiang    Email: frd(@)metalwirenetting.net   Tel: 0086-311-89252662   Fax:0086-311-81580220
