2-12mm Automatic Metal wire straightening and cutting machine

    Wire Straightening and Cutting Machine    (1) Description Of Wire Stragithening and Cutting Machine   Description: Wire Straightening and Cutting Machine
This machine mainly consists of tray bar rack, straightening rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances. This machine is applicable to straightening cutting of all types of mental wire.      (2) Parameters Of Wire Stragithening and Cutting Machine   Technical Parameter: Wire Straightening and Cutting Machine

Model	SC1.5-3.5	SC2-5	SC4-8	SC4-12	SCHA 5-12	SCHB 5-12
Dia. mm	1.5-3.5	2-5	4-8	4-12	5-12	5-12
Cut Length mm	30—2000	30-6000	200-6000	200-6000	700—12000	700—9000
Cut error mm	±1	±1	±1	±1	±10	±10
Speed m/min.	25	30	35	30	45	45
Straight Motor kw	1.5	1.5	4	7.5	11	11
Cutting Motor kw	0.75	0.75	3	4	4	4
Overall Size M	1.7X0.4X0.8	1.2X0.4X0.9	7.3X0.6X1.2	8X0.8X1.3	2.1X0.7X1.3	1.9X0.6X1.4
Weight KG	130	150	650	1000	1200	900

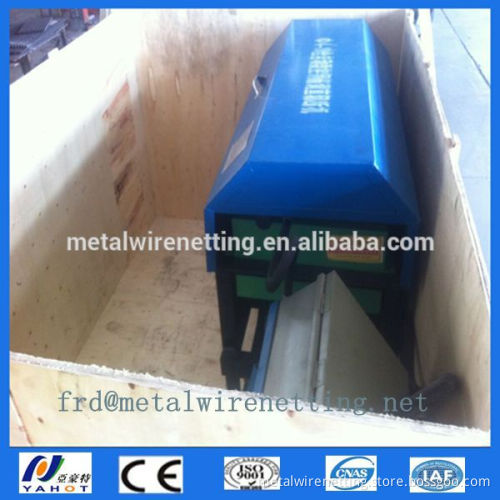

 (3) Photos Of Wire Stragithening and Cutting Machine      Welcome you to learn more details from us about our Straightening and Cutting Machine. Different Colours can be Customized.       Our Services     Sales Manager : Ms Li Xiang    Email: frd(@)metalwirenetting.net   Tel: 0086-311-89252662   Fax:0086-311-81580220
