Basic Info

Place of Origin:	Shandong, China (Mainland)
Supply Ability:	50 Set/Sets per Week
Payment Type:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

China Supplier! Wire Drawing Machine Best Price! Product Description

Power Control	the double frequency converter control
Most eye modulus	19
Into the wire diameter	0.12&0.70mm
Finished diameter	0.06&0.15mm
Maximum wire speed	MA*1200m/min
Mechanical reduction rate of 15%	Capstan reduction rate of 13%
Body structure	one welding
The Capstan material	mold steel capstan
Wire drawing power	7.5KW
Closing line power:	1.5kw
Capstan diameter	230mm
Fixed speed wheel diameter	240mm
Winding shaft sizes	200mm or rely on the customer to specify
Closing line	top center screw pressing style
Cable	synochronous motor+flat belt
Transmission	flat belt
The coiling Control	PID displacement detection automatic control
Displacement detection device	swing arm buffer rod
Tension adjustment method	spring tension way
Maximum load weight	16KG or specified by customers
Lubrication	immersion fo the wire drawing
Brake	electromagnetic brake
Bearing lubrication	oil free
Voltage	380V50HZ
Machine weight	800KG

Company Information

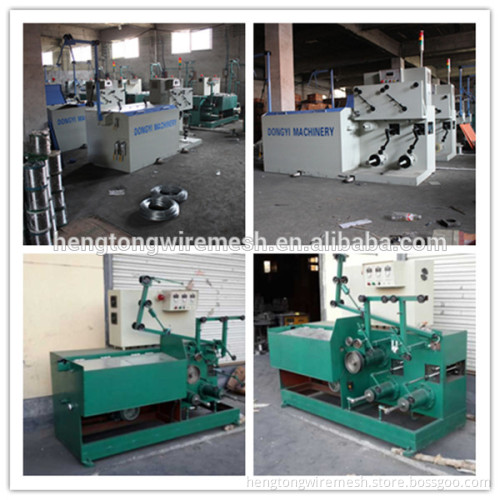

2 About the machine

3 Mention 1)Transport : Sea transport is avaliable 2)Delivery Time : 7-10 days after receive deposit 3)Payment term:30% in advance .70% before leaving factory Contact Us Phone:0086-15100156691 Skype;hengtongmachine1
