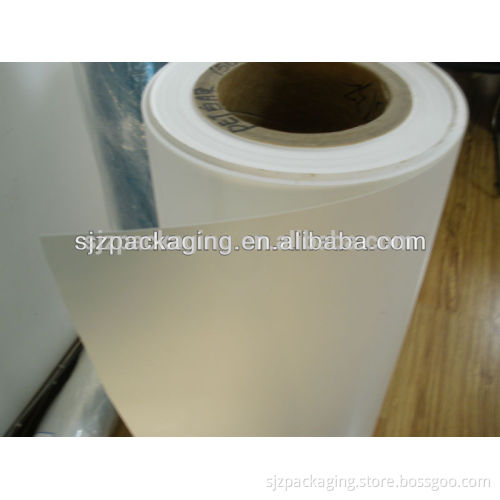

Color Decorative Milky White Polyester Film

Specifications 1).0.10mm-0.35mm;

2). Excellent dielectric properties

3). good strength and toughness

4).For decotation

Color Decorative Milky White Polyester Film 1 .Description:  Excellent electrical insulation. slot and coil insulation of motor, sparate insulating base material 2.Specifications: 1).0.10mm-0.35mm; 2). Excellent dielectric properties 3). good strength and toughness  4).cutting strips sheet and so on 3.color: milk white 4.Application: PET film for electrical insulating is  used For magnetic recording, the photosensitive materials, electronics, electrical insulation, the field of industrial films, packaging, decoration. Heat-resistance: 120 degree Property:With high dielectric and mechanical property, Application: it is suitable for electrical insulation, such as slot insulation, ,interurn and liner insualtion ,wrapping insulation for coils and cables, as well as producing insulation laminate meterial. 5. technical data

No.	Index		Unit	Index value	Result
1	Apparence		/	Surface flat and clean, no crepe, breakage, particle, bubble, pinhole and impurity. The side is regular and no breakage.	Standard
2	Roll		/	Around the tube core in tense, it’s not beyond side of roll. The thickness no tolerance and Hard infarction. Tolerance of width in roll not above ±2mm	Standard
3	Tube core		/	No off bits, collapse or skew in roll. it’s no effect to film and the property.	76mm
4	Width & Tolerance		MM	1000±2mm	1001mm
5	Thickness & Tolerance		MM	0.130±10%	MAX	MIN	Result
					0.14	0.12	0.13
6	Tensile Strength	MD	Mpa	≥90	110	120	90
		CD			90	70	85
7	Break Elongation	MD	%	≥70	85	72	80
		CD			80	72	79
8	Shrinkage	MD	%	≤3.0	2.6
		CD			2.4
9	Line Frequently Electrical Intensity		V/μm	≥60	65

    OUR SERVICE   We value every inquiry sent to us, ensure quick competitive offer.  We put your order into our tight production schedule, ensure your punctual delivery time. Shipping notice/ insurance to you as soon as your order is shipped. We respond your complain within 48 hours   FAQ   1.Are you a manufacturer? Yes,we have been producing PET FILM, BOPP FILM,COPP FILM,PVDC FILM,PE FILM,PVC FILM,ect.,for more than TEN years.We have our own factory.    2.Do you provide free samples? Yes,the fright should be charged by customers.     Note The size, color and each of the parameters can be changed as your requirements. Also you can send sample to us for testing, and then produce as your samples   Contact: Company name:Shijiazhuang DADAO Packaging Material Co.,LTD Add:NO.9 Changjiang Road,high technology industrial development zone, Hebei ,China Tel:+86-311-85830435 Fax+86-311- 85381038 Skype:emmaliu06 Web:www.ddpackaging.com
