12 micron Gold Metalized Pet paperboard lamination film

Gold Metalized Pet Film for paperboard lamination     Thickness :12 MIC etc Width:≤2100mm Paper core 76mm(3″),152mm(6″)     Features:   1.high adhesion between film and alumium layer after chemical treatment on the surface of film 2.Due to high adhesion of aluminium layer,No Al layer peels the shelf of life can be retained, 3.a higher barrier can be achieved by increasing the thickness of Al layer. 4.strong water resistance 5. high temperature resistance.   Application:   color coating at the aluminum layer .widely laminated with paperboard and used for high-end gift box,cigarette box ,cake board etc.   Color: silver/silver   silver/gold   Technical data sheet :

Item		Unit	Standard	Test method
thickness		mic	12	ASTM D-374
Tolerance		%	±5
Tensile strength	MD	Mpa	≥170	ASTM D-882
	TD		≥170
Heat shrinkage (150°C,30min)	MD	%	≤3.0	ASTM D-1204
	TD		≤3.0
Elogation at break	MD	%	≤200	ASTM D-882
	TD		≤200
Surface tension	Metal coating	Mn/m	≥38	ASTM D-2578
	Film surface		≥38
Friction of coefficient		----	≤0.80	ASTM D-1894
			≤0.80
Uniformity of aluminum layer		%	±10	X-RITE 361T
Firm of aluminum layer		%	≥98	3M Tape
Firm of coating layer		%	≥98	3M Tape

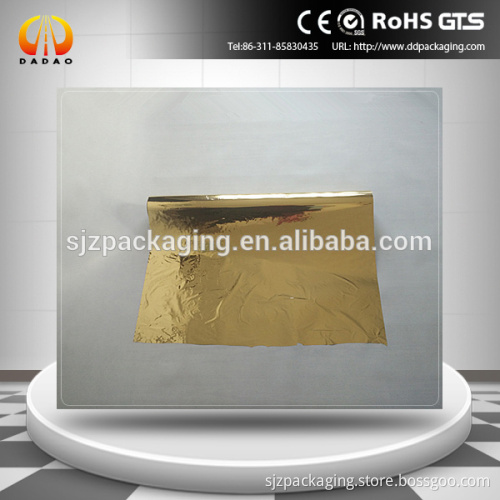

    Product show:         Metallising process:         Secondary cutting:       Packaging:         Application :
