12u~150u PET release film/release liner

12u~150u PET release film/release liner Features: 1. High mechanical strength
2. Low shrinkage
3. High clarity and very smooth surface
4. Minimum rub off and back-side transfer of silicone   Application: Silicone polyester films are ideal for adhesive tapes, labels, membranes, release liners and many other applications.

Polyester film has an extremely smooth surface for 'no-label' look and offers excellent mechanical and thermal properties for the most demanding applications.

DADAO offers silicone coated polyester films in thicknesses of 23, 36 and 50 micron and can be supplied as either reels or sheets   Technical data sheet:

Items		National Standards	Units	Parameters
Gauge		GB/T6672	um	13.5
Unit Weight		DADAO	g/m2	17.5
Coat Weight	Primer	DADAO	g/m2	0.3
	Acrylic	DADAO	g/m2	2.0
Yield		DADAO	m2/kg	52.4
Coat Side				Coated on treated side
Haze		ASTMD1003	%	4.5
Surface tension (Acrylic coated face)	Coated Side	GB 13022	dyne	40
	Uncoated Side			42
C.O.F	Coated Side	ASTM 1894		0.35
	Uncoated Side			0.35
WVTR		ASTM F1249	g/m2.24h	40
OTR		ASTM D3985	ml/m.24h.atm	300
Heatseal Strength		135°C,0.25Mpa,0.5s	N/15mm	1.2
Statement		All the datas above obtained from our laboratory   These values are for informative purpose and not in guarantee or warranty in any specific condition. Users are advised to conduct their own testing to determine product suitability

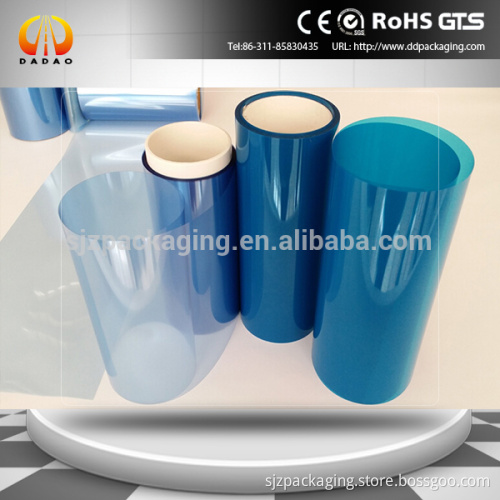

  Contact information:  Shijiazhuang DADAO Packaging Material Co.,LTD NO.9 Changjiang Road,high technology industrial development zone, 050000 shijiazhuang , Hebei ,China Whatsapp" 86-13722780453 Skype:emmaliu06     Product show:
