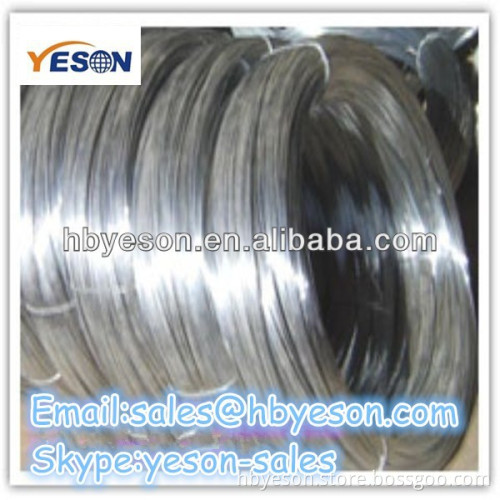

Q195 Galvanized iron wire for construction

Q195 Galvanized iron wire for construction   1.Galvanized wire is classified into hot dipped galvanized wire and electro-galvanized wire. 2.production process:steel rod coil→wire drawing→wire annealing→rust removing→ acid  washing→zinc plating→wire coiling 3.material:low carbon steel 4.wire gauge:BWG8#--BWG22 5.zinc coated:                    electro galvanized zinc:       16kg/m2--25kg/m2                    hot dipped galvanized zinc:  40kg/m2--80kg/m2     100kg/m2--250Kg/m2 6.tensile strength:350--380Mpa 7.use:wearing of wire mesh,fencing for expressway and construction ect. 8.packing:small coil,big coil,                 coil weighted:5kgs--800kgs                 swapped with wax paper or connected with plastic belt,then put into jute                 5kg, 25kg, 50kg percoil, wrapped with PP bag and weaving bag or hessian cloth.   9.payment: T/T L/C 10.deliver time: according to the  order

Galvanized Iron Wire
Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4.00
9	3.66	3.76	4.00
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	2.50
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.84	0.90
21	0.81	0.81	0.80
22	0.71	0.71	0.70
