China supply horizontal multistage pump centrifugal LPG pump

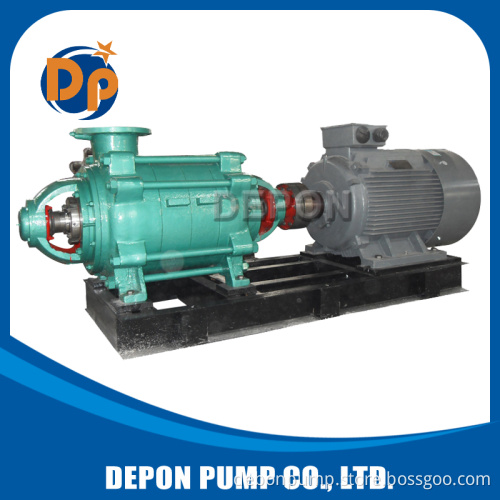

China supply horizontal multistage pump centrifugal LPG pump      The Depon®  series single-suction multistage centrifugal pumps is widely used system of high-pressure run hot and cold water circulation and booster pumps in parallel water supply of the high-rise building, fire, boiler feed water and cooling water systems and a variety of irrigation fluid conveying.    Product Description High Efficiency Horizontal Multistage Water Pump   Features Cast iron, duct alloy, carbon steel, zinc free bronze, silicon brass or stainless steel construction (other materials available on request) High efficiency double suction impeller Durable, low noise, long life bearing Premium quality mechanical seal Electric or diesel drive Pump Application: long distance water transferring boiling water feeding and transferring water system boosting agricultural irrigation mining water supply fire fighting offshore projects Pump Structure Pumps structure

Performance Curves of Dp Series Technical Data

Model	Capacity (m3/h)	Head (m)	Speed (rpm)	Motor Power (kw)	Impeller Dia (mm)
6-25*4	6.3	100	2950	7.5	139
6-25*5	6.3	125	2950	7.5	139
6-50*4	6.3	200	2950	18.5	198
12-25*4	12.5	100	2950	11	146
6-80*3	6	240	2950	18.5	235
12-80*4	12.5	320	2950	45	235
25-30*3	25	90	2950	15	160
46-30*5	46	150	2950	37	162
85-67*4	85	268	2950	110	235
120-50*5	120	250	2950	132	213
150-30*8	150	240	2950	160	172
150-100*6	150	600	2950	400	289
200-100*6	200	600	2950	560	290
280-65*6	280	390	1480	500	430
300-45*4	300	180	1480	200	360
150D30*6	155	180	1480	132	305
