Low Pressure Hot Sell Sand Gravel Slurry Pump

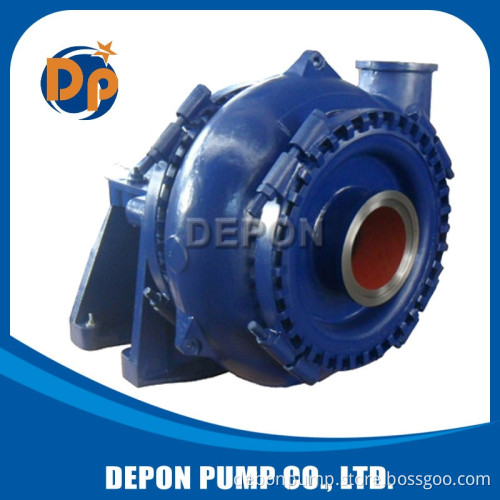

    Low Pressure Hot Sell Sand Gravel Slurry Pump   The Depon Gravel Pump is the world's standard for the most difficult mill duties. A wide variety of impeller and shaft seals provide a perfect fit for a wide range of applications. The Depon ® gravel pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. Product Description
Impeller Features    · Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.   · Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.   · Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.   · Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.   · Throatbush – wear is reduced and maintenance simplified by the use of tapered.   Model Meaning
Struction Metal Lined Pump   Rubber Lined Pump   Performance Curves of Dp Series Technical Data of Sand Slurry Pump

Parameters Table of DP-G Type Gravel Pump
Type	Capacity(l/s)	Head(m)	Speed(r/min)	Inlet Dia.(mm)	Outlet Dia.(mm)	Max.Partice Size(mm)
6/4D-DP-G	10-70	3.5-51	600-1400	100	150	82
8/6E-DP-G	38-100	10-48	800-1400	150	200	127
10/8S-DP-G	60-272	13-50	560-1600	200	250	178
12/10F-DP-G	100-420	11-58	400-850	250	300	220
14/12G-DP-G	140-880	6-66	300-700	300	350	241
18-16G-DP-G	240-1060	9-48	250-500	400	450	254
12/10G-DP-GH	170-620	58-78	350-700	250	300	210
10/8S-DP-GH	110-360	18-80	500-950	200	250	180
