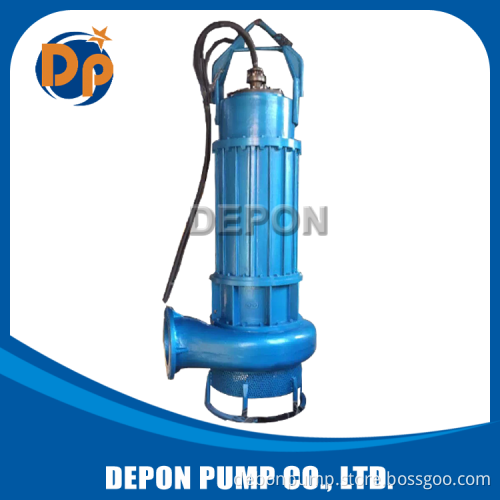

Sand Resistance Deep Well Water Pump

 Sand Resistance Deep Well Water Pump The Depon® DSS series Slurry pump is a kind of hydraulic mechanism which motor connects directly with pump. It is used for delivering liquid contained sand, coal conder solid etc.. The pump can be mainly employed in clearing the mud in lake, river, sea and widening channel etc. It also can be applied to clear out sewage pool; in building site, steel wokrs and power station and so on, the pump adopts excllent material, advanced structure, and it is with wide flowing passage&strong delivery ability. The hydraulic parts are wear-resistant. The pump isyet completed with control unit.   Product Description DP-SS Submersible Slurry Pump   Applications  of  DP-SS Submersible Slurry Pump
  Pump Structure      Pump Struction

      Features   Submersible work without influence of suction head; No assistant vacuum pump, save invest; No noise, keep the silence of work station; With agitator, no need extra stirring devices, more convenience for operating; It need not build pump house. Directly work on the surface of slurry, with higher efficiency to deliver slurry.      Pump Material       Performance Curves of Dp Series Submersible Slurry Pump     Technical Data

Item	Submersible slurry pump
Model	DP-SS
Material	27% Chrome White Iron, SS 304,SS 316, or cutomized
Color	Decided by user
Mode	Submersible
Impeller	single impeller
Drive	Direct coupling
Seal	Packing seal or mechanical seal
Speed	1460r/min,980r/min
Theory	Centrifugal pump
Structure	Single stage pump
Usage	High density slurries with solids etc.
Power	Electric motor
Standard	ISO
Application	Mining. civil construction, industry, dredging
Outlet diameter	3.15-16inches
Capacity	22-2400 m3/h
Head	8.6-70m
Power	7.5-315kw
Warranty	1year
Certificate	ISO9001
OEM	Acceptable
Max Solids Dia	2.4 inches
