Welding Rod Manufacturing Machinery For Welding Rod Oven

  SHIJIAZHUANG SHUANGLU MACHINERYCO.,LTD.   Welding Electrode Manufacturing Machinery For Welding Electrodes Oven  1. Welding Electrodes Oven 2.Optional Output Capacity

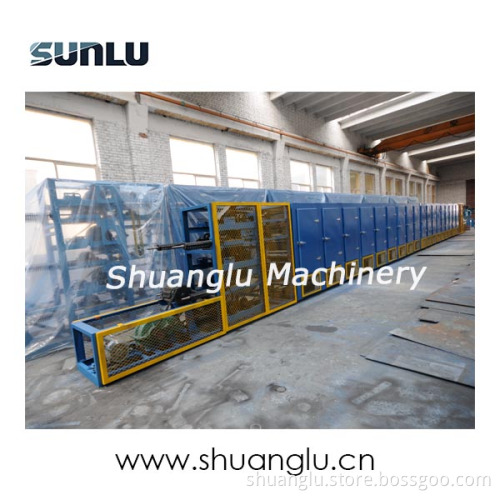

3.Factory Supply 4.ISO9001:2008 Automatic chain-type drying furnace/welding electrode making machine SHG Automatic Chain-type Drying Furnace, as the special production equipment for welding electrodes, can be used in baking of welding rods.  Specifications and Parameters

No.	Name	SHG-3A	SHG-5A	SHG-7A
1	Drying Mode	Far-infrared (electrical), natural gas, diesel, coal
2	Applicable Scope	Φ2.5-Φ3.2mm	Φ2.5-Φ5.0mm	Φ2.5-Φ5.0mm
3	Length	250-400mm	250-450mm	250-500mm
4	Convoying Mode	Chain type
5	Operating Speed	1.2-2.8M/min	2.5-5M/min	2.5-5M/min
6	Effective Drying Length	24M	24M	15M
7	Motor Power	4kw	7kw	8.8kw
8	Cooling Power	1.08kw	1.08kw	0.675kw
9	Far-infrared (Electrical) Drying Power	134.4kw	172.8kw	168kw
10	Max. Drying Temperature	230 °C
11	Heating-up Time	≤30min
12	Alarm Mode	Lever-type alarming light display, quick sound alarming
13	Cooling Mode	Natural + forced
14	Max. Output/Per Hour	1T/S	1.5T/S	1.5T/S
15	Dimensions(mm)	30500*1100*1550	31140*1100*1800	22600*1500*2650

    Welding Electrode Manufacturing Machinery For Welding Electrodes Oven     Delivery detail   Install detail
