SHUANGLU/SUNLU SHG Automatic Chain-type Drying Furnace for Welding Rods/Electrodes

SHUANGLU/SUNLU SHG Automatic Chain-type Drying Furnace for Welding Rods/Electrodes

$12000.00 - $60000.00/set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	20 Set/Sets per Year
Payment Type:	L/C,T/T,Western Union

Product Description

Shijiazhuang Shuanglu Machinery Co., Ltd.("Shuanglu" and "SUNLU" for short), as a member of China Welding Association (CWA) and one of the appointed manufacturers of China National Electric Equipment Corporation (CNEEC), manufactures complete welding electrode production line.

Automatic !

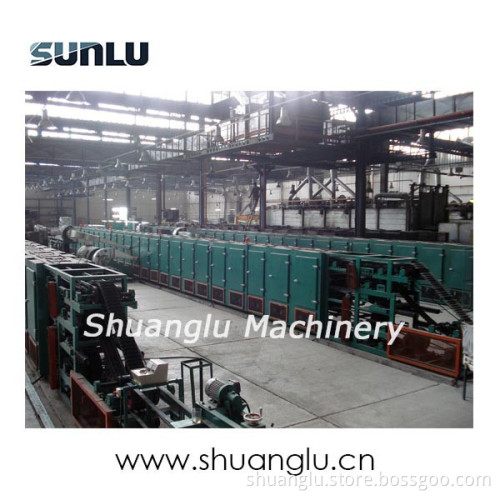

SHG Automatic Chain-type drying furnace is the automatic drying oven for baking welding electrodes before brand printing and packing. Its maximum temperature is 230 ℃.

SXL 450 Box type drying furnace mainly designed for drying special welding electrode.Its maximum temperature is 450 ℃.

No.	Model	SHG-3	SHG-5	SHG-7
1	Hold true range	Φ2.5-Φ3.2mm	Φ2.5-Φ5.0mm	Φ2.5-Φ5.0mm
2	length range	250-400mm	250-450mm	250-500mm
3	Transmission mode	Chain transmission
4	Operating speed	1.2-2.8M/min	2.5-5M/min	2.5-5M/min
5	Effective drying length	24M	24M	15M
6	Motor power	4kw	8kw	8.8kw
7	Cooling Power	1.08kw	1.08kw	0.675kw
8	Far-infrared(electricity) drying power	134.4kw	172.8kw	168kw
9	Max. Drying Temperature	230 ℃
10	Heating time	≤30min
11	Alarm manner	Lever alarm light showing automatic stopping
12	Cooling manner	Forced-air-cooling
13	Maximum output per hour	1T/H	1.5T/H	1.5T/H
14	Overall size(mm)	30500×1100×1550	31140×1100×1800	22600×1500×2650

We suppy Turn-key project:

Welding electrode production line + Wear Parts + Raw Materials+ Installation + Training + Technical service after sell = whole package of making welding electrodes.

Our Market:

So far SUNLU machines have exported to USA, Brazil, Qatar, Saudi Arabia, Egypt, Russia, Ukraine, Uzbekistan, Tajikistan,Uganda,South Africa,India, Pakistan etc.

Welding electrode making procedure:

Wire drawing process → Wire cutting process → Flux mixing process →

Flux coating process → Drying process → Printing process →Packing process
