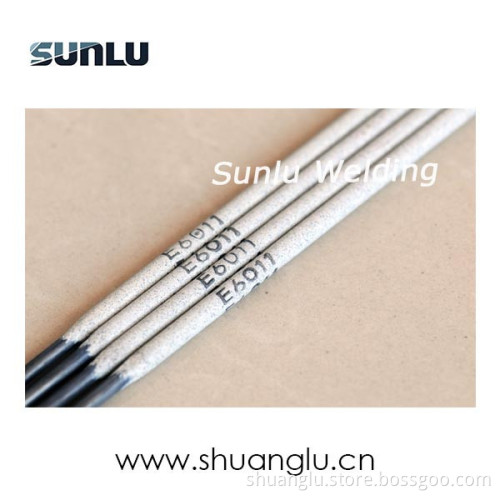

We are factory!   Packing:   2.5mm:2.5kg/box, 20kg/box, 2tons/pallet. 3.2mm:5kg/box, 20kg/box, 2 tons/pallet. 4.0mm:5kg/box, 20kg/box, 2 tons/pallet. 5.0mm:5kg/box, 20kg/box, 2 tons/pallet. Or Customize!   Our factory supply:   AWS E6013,E7018,E6011, E6010,E308L-16 welding electrodes and mig wire!
  Market:   So far exported to Japan, Saudi Arabia, Qatar, USA,Brazil,Ukraine,Kenya,Thailand, India .etc.     Notes on Usage   1. Dry the electrodes at 70~100 (158~212 ) for 30~60 minutes before use.   2. Pay attention not to exceed the range of proper currents.

Chemical Composition	C	Mn	Si	S	P
Guarantee Value	≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040

  Mechanical Properties of Deposited Metal

Test Item	Rm(MPa)	ReL(Mpa)	A(%)	KV2(J)	KV2(J)
Guarantee Value	≥420	≥330	≥17	-(normal temperature)	-(0℃)

  Reference Current (AC, DC)

Electrode Diameter(mm)	φ2.0	φ2.5	φ3.2	φ4.0	φ5.0
Length(mm)	300	300(350)	350	400	400
Welding Current (A)	40~70	55~95	80~130	120~180	160~230
V-up, OH	35~60	45~90	60~120	100~160	120~200

  X-ray Radiographic Inspection:ⅡDegree         More detailed and photos, please check our website:   WWW.SUNLUWELDING.COM
