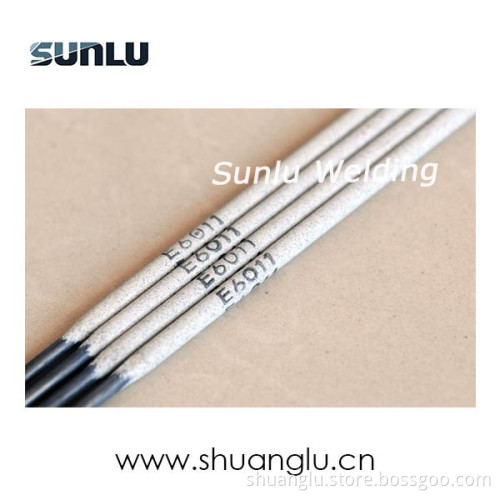

Welding Rods and Electrodes 6011
- Min. Order:
- 1 ton
- Min. Order:
- 1 ton
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 6000 Ton/Tons per Year |
|---|---|
| Payment Type: | L/C,T/T,Western Union |
We are factory!
Packing:
2.5mm:2.5kg/box, 20kg/box, 2tons/pallet.
3.2mm:5kg/box, 20kg/box, 2 tons/pallet.
4.0mm:5kg/box, 20kg/box, 2 tons/pallet.
5.0mm:5kg/box, 20kg/box, 2 tons/pallet.
Or Customize!
Our factory supply:
AWS E6013,E7018,E6011, E6010,E308L-16 welding electrodes and mig wire!
Market:
So far exported to Japan, Saudi Arabia, Qatar, USA,Brazil,Ukraine,Kenya,Thailand, India .etc.
Notes on Usage
1. Dry the electrodes at 70~100 (158~212 ) for 30~60 minutes before use.
2. Pay attention not to exceed the range of proper currents.
Chemical Composition | C | Mn | Si | S | P |
Guarantee Value | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | -(normal temperature) | -(0℃) |
Reference Current (AC, DC)
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Length(mm) | 300 | 300(350) | 350 | 400 | 400 |
Welding Current (A) | 40~70 | 55~95 | 80~130 | 120~180 | 160~230 |
V-up, OH | 35~60 | 45~90 | 60~120 | 100~160 | 120~200 |
X-ray Radiographic Inspection:ⅡDegree
More detailed and photos, please check our website:
WWW.SUNLUWELDING.COM
