2.5mm-5.0mm AWS E6013 E7018 Heavy Coated Welding Electrodes
- Min. Order:
- 10 ton
- Min. Order:
- 10 ton
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 50 Ton/Tons per Day |
|---|---|
| Payment Type: | L/C,T/T |
2.5mm/3.2mm/4.0mm/5.0mm aws e6013 e7018 e308 e308L e316 e316L welding electrodes
1. We are professional and qualified manufacture for carbon steel welding electrodes: E6013.
2. Size: 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm.
3. Packing: 2.5kg/box, 5kg/box, 20kg/carton.
4. High titanium type welding electrodes used for welding in all positions.
5. Factory supply directly. Our own brand for welding electrodes is SUNLU BRAND, we can do OEM package as clients required if you need.
6. Stable quality and sweet after sale service guarantee.
Introduction
AWS E6013 is a kind of carbon steel electrode with titania type coating. AC/DC. All-position welding. It has excellent welding performance, excellent operating performance, easy reignition, stable arc and beautiful appearance of weld.
Notes on Usage
1. Dry the electrodes at 70~100 (158~212 ) for 30~60 minutes before use.
2. Pay attention not to exceed the range of proper currents.
Chemical Composition | C | Mn | Si | S | P |
Guarantee Value | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | -(normal temperature) | -(0°C) |
Reference Current(AC, DC)
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Length(mm) | 300 | 300(350) | 350 | 400 | 400 |
Welding Current (A) | 40~70 | 55~95 | 80~130 | 120~180 | 160~230 |
V-up, OH | 35~60 | 45~90 | 60~120 | 100~160 | 120~200 |
X-ray Radiographic Inspection:ⅡDegree

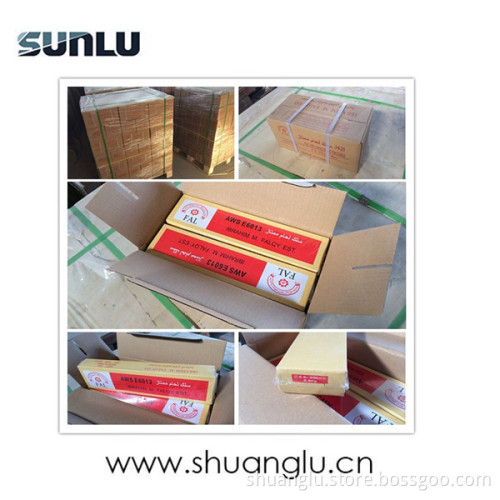

3.2mm: 5kg / box / shrink wrapped, 20kg (4boxes) / carton, 1,000kg (50cartons) / pallet.
our own packing is SUNLU brand,we also can do OEM packing for you.
Shipping:15 days after we receiving the advance payment.
Quality control
All the raw materials will be do strict inspection before use.
Our products meet international standards, and have strict internal control standards.
Good operating performance ---- small splash ,no smoking,,forming good.
Certificates and honors
We has passed the certification of ISO9001:2008 Quality Management System in 2005
we get a lot of honor and the quality of the welding electrodes also won customers' affirmation .
Shijiazhuang Shuanglu Machinery Co., Ltd.(“Shuanglu” for short), as a member of China Welding Association (CWA) and one of the appointed manufacturers of China National Electric Equipment Corporation (CNEEC), produces complete welding electrode production line. With rich experience, delicate equipment, advancing process, stable quality and strong technical force, Shuanglu has grown into a comprehensive mechanical Industry company integrating R&D, design, manufacture, sales and service.
