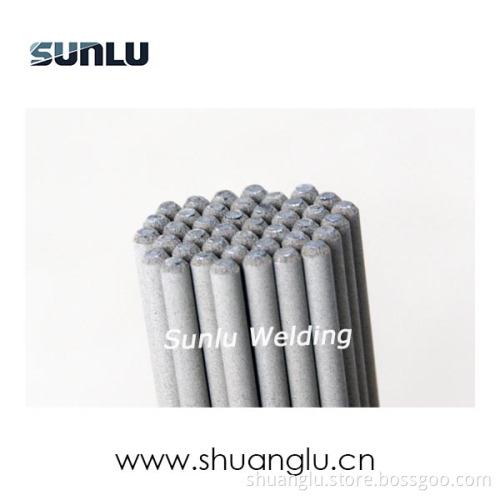

Low Price Weld Electrode Rod aws e7018 And Electrodes Welding
Description
1. We are professional and qualified manufacture for carbon steel welding electrodes: E7018.
2. Size: 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm.
3. Packing: 2.5kg/box, 5kg/box, 20kg/carton.
4. High titanium type welding electrodes used for welding in all positions.
5. Factory supply directly. Our own brand for welding electrodes is SUNLU BRAND, we can do OEM package as clients required if you need.
6. Stable quality and sweet after sale service guarantee.
AWS E7018 is a kind of carbon steel electrode with iron powder low-hydrogen potassium type coating. AC/DC. The deposition efficiency can be improved due to the iron powder in the coating. It has stable arc, fewer spatters, good slag detachability and excellent welding performance. The deposited metal has excellent mechanical properties. All-position welding.
Uses
Used for welding carbon steel and low-alloy steel structures, such as 16Mn, etc.
Notes on Usage
1. The electrodes must be baked under 300~350°C for an hour before welding and used as soon as baking is completed. 2. The stains on the weldments, such as rust, oil stains, moisture, etc., must be cleared away before welding. 3. When welding, short arc must be used and stringer bead is suitable. |
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P | Ni | Mo | Cr | V |
Guarantee Value | ≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.08 |
Mechanical Properties of Deposited Metal
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) |
Guarantee Value | ≥490 | ≥400 | ≥22 | ≥27(-30°C) |
Diffusible Hydrogen Content in Deposited Metal:≤8.0ml/100g(Glycerine Hydrogen Test)
Reference Current(AC, DC+)
Electrode Diameter(mm) | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Length(mm) | 300 | 350 | 400 | 400 |
Welding Current (A) | 60~100 | 80~140 | 110~210 | 160~230 |
X-ray Radiographic Inspection:ⅠDegree
3.2mm: 5kg / box / shrink wrapped, 20kg (4boxes) / carton, 1,000kg (50cartons) / pallet.
our own packing is SUNLU brand,we also can do OEM packing for you.
Shipping:15 days after we receiving the advance payment.
Quality control
All the raw materials will be do strict inspection before use.
Our products meet international standards, and have strict internal control standards.
Good operating performance ---- small splash ,no smoking,,forming good.
Certificates and honors
We has passed the certification of ISO9001:2008 Quality Management System in 2005
we get a lot of honor and the quality of the welding electrodes also won customers' affirmation .
Shijiazhuang Shuanglu Machinery Co., Ltd.(“Shuanglu” for short), as a member of China Welding Association (CWA) and one of the appointed manufacturers of China National Electric Equipment Corporation (CNEEC), produces complete welding electrode production line. With rich experience, delicate equipment, advancing process, stable quality and strong technical force, Shuanglu has grown into a comprehensive mechanical Industry company integrating R&D, design, manufacture, sales and service.
Our Company Exhibition
SUNLU had been attended exhibition in Dubai.
ELECTRIC SHOCK can kill. Do not permit electrically live parts or electrodes to contact skin, clothing or gloves if they are wet. Insulate yourself from work and ground.
FUMES AND GASES can be dangerous to your health. Keep fumes and gases away from your breathing zone and general area. Keep your head out of fumes... Use enough ventilation or exhaust at the arc or both ARC RAYS can injure eyes and barn skin. Wear correct eye, ear.And body protection.
Welding position
