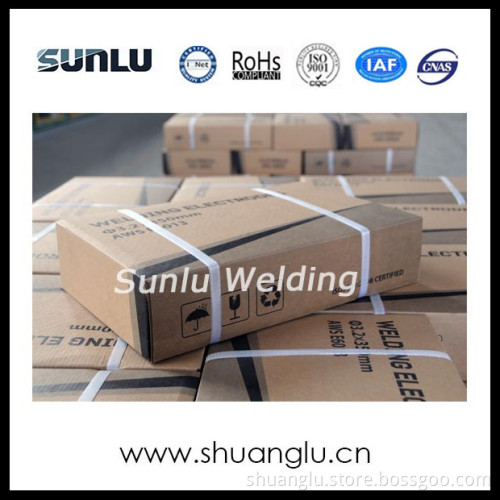

Welding Electrode Box Welding Electrodes e7018 e6013

Specifications 1.AWS E6013,E7018 Welding Electrodes 2.Size:2.5*300mm,3.2*350mm,4.0*400mm,5.0*500mm

3.Good Price ,ISO quality and OEM

Welding Electrode Box Welding Electrodes e7018 e6013 1.AWS E6013,E7018 Welding Electrodes 2.Size:2.5*300mm,3.2*350mm,4.0*400mm,5.0*500mm
3.Good Price ,ISO quality and OEM Introduction AWS E7018 is a kind of carbon steel electrode with iron powder low-hydrogen potassium type coating. AC/DC. The deposition efficiency can be improved due to the iron powder in the coating. It has stable arc, fewer spatters, good slag detachability and excellent welding performance. All-position welding. Uses Used for welding carbon steel and low-alloy steel structures, such as 16Mn, etc. Chemical Composition of Deposited Metal (%)

Chemical Composition	C	Mn	Si	S	P	Ni	Mo	Cr	V
Guarantee Value	≤0.12	≤1.60	≤0.75	≤0.035	≤0.040	≤0.30	≤0.30	≤0.20	≤0.08

Mechanical Properties of Deposited Metal

Test Item	Rm(MPa)	ReL(Mpa)	A(%)	KV2(J)
Guarantee Value	≥490	≥400	≥22	≥27(-30°C)

Diffusible Hydrogen Content in Deposited Metal  ≤8.0ml/100g(Glycerine Hydrogen Test) Reference Current (AC, DC+)

Electrode Diameter(mm)	φ2.5	φ3.2	φ4.0	φ5.0
Length(mm)	300	350	400	400
Welding Current (A)	60~100	80~140	110~210	160~230

Shijiazhuang Shuanglu Machinery Co.,Ltd the most professional and experienced factory in China welding industry. Our welding electrode making machines have the most advanced automation control system for E6013/E7018 Welding Electrode Production Line.We can satisfy the customer's need according to each national electric voltage standard.
We design and supply complete line including: Descaling machine, Wire drawing machine, Wire cutting machine, Powder mixer, Wire-feed machine, Helix powder coating machine, Head-Tail Grinder machine, Electrode eccentrichy measuring Instrument, Automatic chain type drying furnace, Machine baler, Reclaiming machine, Straightening machine, Hydraulic slug presser, Hydraulic coating machine, electrode conveyor machine, Machine baler etc. We provide the professional technical services of installation, commissioning and training etc. Shijiazhuang Shuanglu Machinery Co., Ltd.is a professional manufacture of welding electrode and its production line,we has passed the certification of ISO9001:2008 Quality Management System in 2005 and have long strong relationship with every client! Your inquiry will be highly appreciated! Any question feel free to email cathy at shuanglu.cn or call me at 0086-18931113800,thank you for support!
