Suncel Wire truss lattice girder

Specifications Wire truss lattice girder

carbon steel/rebar/Steel Rod HRB500

4-12mm Dia.

0.2-12m Length

100000meters/day

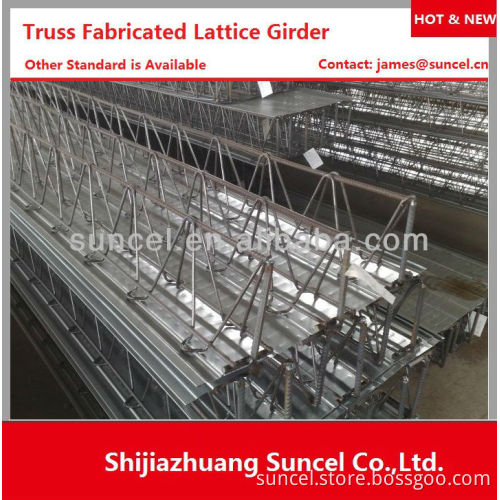

Wire truss lattice girder
  Steel bar Lattice or truss girder is mainly used for the prefabrication of concrete planks,a medullar element in the Hollow Block Floor Slab System for constructing concrete slabs. Truss grider has a triangluar shape, it is welded and it has three defrmed longitudinal bars(one upper and two lower). They are joined by a smooth diagonalbar in a zig-zag pattern.   Upper Rod(mm): 6-12 Lower Rod(mm): 6-12 Diagonal(mm): 4-7 Pitch Distanc(mm): 190-210 or other required Height(mm): 100-300 or other required Width(mm): 25-125 or other required Length: 200-12000       Other Relative wire product for construction: Hoping to be your honorable supplier.   Best Regards James Cui
