peristaltic dosing pump / lab instrument with big flow rate (400-13000ml/min)

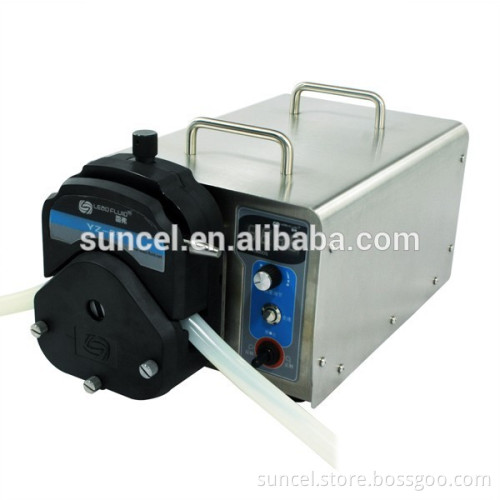

WG600S Industrial Speed –Variable Peristaltic Pump   introduction: The pump is suitable for transferring large amount of fluid in industry. One channel flow range: 0.4-13 L/min, speed range: 30-600 rpm. It can cascade two pump heads. It adopts the brushless motor drive with large torque, free maintenance. Having basic functions:such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC. Technical parameters
• One channel flow range :0.4-13L/min
• Flow accuracy:<3%
• Speed range:30-600rpm.
• Speed resolution: 1 rpm
• Power supply :AC 220V±10%,50Hz/60Hz(standard),
• Power consumption:<300W
• External control:Input electrical level 5V, 12V (standard),24V(optional).
• External communication interface:RS485 communication interface,
support the MODBUS protocol.
• Ambient temperature:0 ~ 40℃
• Relative humidity:<80%
• IP grade:IP31
• Dimensions(LxWxH)340mmx235mmx175mm
• Weight:13KG   Application areas / References   Medical Technology {link Medical Technology}
Biotechnology
Pharmacy
Analytics/ Diagnostics
Lab
Food and Beverage
Water/ Waste Water/ Environmental Technology
Chemistry
Climate/ Heating
Industrial   packing: stock show :   Transportation
 contact   We support one year for our pumps ,free repair.
