Armagel Aerogels Industrial Insulation Solutions

Armagel Aerogels Industrial Insulation Solutions

Description

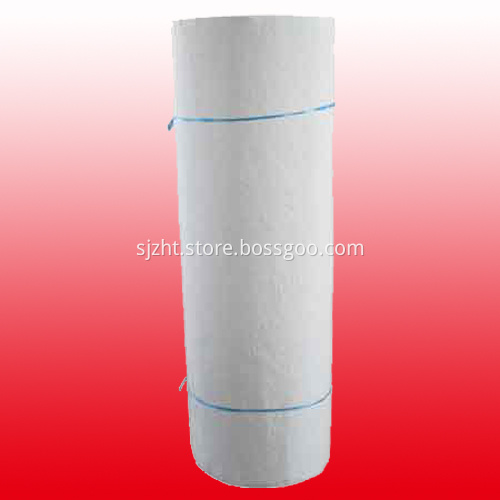

Aerogel Blanket is by far the lightest solid known to mankind, is by far the best known thermal insulation properties of materials, the silica nanopore (1-50nm) structure, it has Low thermal conductivity (0.012-0.020w / mk), low density (1-100kg / m3), low dielectric constant (1-2.2), noncombustible, stable properties and other characteristics in the military, aerospace, aviation, telecommunications, Energy, construction, transportation and other fields have a wide range of applications

Aerogel Blankets is the most effective high-temperature insulation material in the industrial market, typically 2-5 times thinner than other widely used insulation products. It is our easiest product ever to handle, store, and install.

Tested to the most stringent fire-protection standards, Aerogel Insulation Blanket delivers hydrocarbon pool-fire protection for up to 4 hours, and jet fire protection up to 2 hours. It can also be used to meet the requirements of API 521 for the sizing of pressure relief systems.

Specification

Thickness:3mm,6mm,10mm

Roll Length:36M or as request

Width:1500MM or as request

Use Temperature:-50~650 C

Dimensional Stability(GB/T8811):1%

Reshrinking Temperature(GB/T11835):800 C

Compressive Property(GB/T13480):@10%,20Kpa

                          @25%,150Kpa

Flame Rating(GB/T8624):A

Tensile strength(GB/T17911):1000KPa

Thermal conductivity(GB/T 10295):25C,0.020W/(M·K)

                         200C,0.028W/(M·K)

                             300C,0.035W/(M·K)

                         400C,0.044W/(M·K)

                         500C,0.069W/(M·K)

                         650C,0.095W/(M·K)

Application

(1) Pipe insulation

(2) Equipment insulation

(3) Tank thermal insulation

(4) Vehicle insulation

(5) High-end building, roof and floor heating insulation

(6) Chemical, biological pharmaceuticals pipeline insulation

Feature

It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
