Stainless Steel Surgical Instrument Trays

Product Description Surgical Instrument Tray for Washing & Sterilizing Surgical instrument tray, as its name implies, provides the most efficient method for cleaning and sterilizing surgical instruments. Our surgical instrument trays, made of 100% high tensile strength electro-polished stainless steel, are guaranteed to “last”. Meanwhile, they are strictly inspected by hand to ensure superb weld security as well as surface smoothness. Features: Surgical instrument trays allow for great steam penetration and prevent delicate instrument points from being damaged. Strong and durable structure without distortion. Stackable structure to save larger space for you. With drop down handles or folding handles for easy handling. Protect-a-edge design without sharp edges. Electro-polished after welding & fabrication for shiny appearance and removing burrs & weld splatters to ensure the safety of user. Reduce the injection possibilities by decreasing the amount of contact. Superb resistance against acids, alkali and other chemical liquids. Excellent temperature, corrosion and wear resistance. Non-toxic, no smell, healthy and eco-friendly. Easy to clean and disinfect and air-dry.

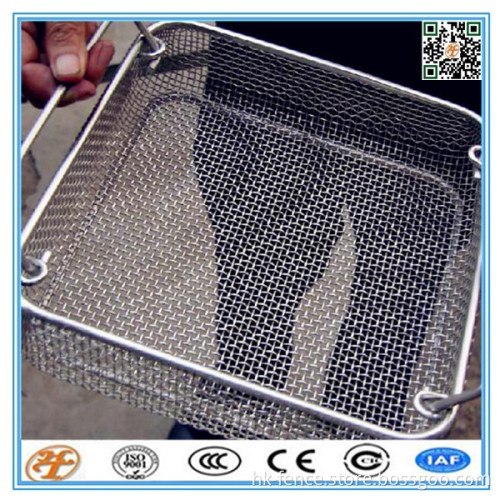

Woven wire mesh instrument tray (DIN)
With drop down handles.
Welded mesh instrument tray (DIN)
With drop down handles.
Special perforated sides tray (DIN)
With folding handles.
Standard perforated sides tray (DIN)
With drop down handles.
Welded mesh tray (SPRI / ISO)
Without handles.
Welded mesh trays (SPRI / ISO)
With hinged lids.
Instrument tray with a cover & snap-on locking.
Instrument tray with dividers and hinged lids. Applications: Instrument washing, ultrasonic cleaning, sterilizing and inspection. Baskets for easy storing and transporting. Storing medicines and instruments in hospitals, labs and chemical factories. Handling computer, military and aerospace component parts. Dividing different types of medical components. Details: Material: 302, 304, 316, 316L stainless steel wire. Surface treatment: Electro polished. Packing: Packed in poly bags and cartons. Wire diameter: 1mm to 8mm upon your request. Hole size: Micro mesh size: 2mm gap between each wire. Small mesh size: 4mm gap between each wire. Standard mesh size: 6mm gap between each wire. Specification:

Woven & welded wire mesh tray (DIN)
Code	Length	Width	Height	Code	Length	Width	Height
WITD-1	120mm	250mm	50mm	WITD-8	480mm	480mm	60mm
WITD-2	240mm	250mm	50mm	WITD-9	540mm	252mm	60mm
WITD-3	480mm	250mm	50mm	WITD-10	240mm	250mm	70mm
WITD-4	480mm	480mm	50mm	WITD-11	480mm	250mm	70mm
WITD-5	510mm	254mm	50mm	WITD-12	520mm	330mm	75mm
WITD-6	240mm	250mm	60mm	WITD-13	480mm	250mm	100mm
WITD-7	480mm	250mm	60mm

Perforated side instrument tray (DIN)
Code	Length	Width	Height	Code	Length	Width	Height
PIT-1	226mm	226mm	60mm	PIT-14	498mm	230mm	75mm
PIT-2	240mm	250mm	60mm	PIT-15	540mm	250mm	75mm
PIT-3	370mm	230mm	60mm	PIT-16	226mm	226mm	100mm
PIT-4	410mm	250mm	60mm	PIT-17	240mm	250mm	100mm
PIT-5	480mm	250mm	60mm	PIT-18	370mm	230mm	100mm
PIT-6	498mm	230mm	60mm	PIT-19	410mm	250mm	100mm
PIT-7	510mm	250mm	60mm	PIT-20	480mm	250mm	100mm
PIT-8	540mm	250mm	60mm	PIT-21	498mm	230mm	100mm
PIT-9	226mm	226mm	75mm	PIT-22	540mm	250mm	100mm
PIT-10	240mm	250mm	75mm	PIT-23	226mm	226mm	150mm
PIT-11	370mm	230mm	75mm	PIT-24	370mm	230mm	150mm
PIT-12	410mm	250mm	75mm	PIT-25	498mm	230mm	150mm
PIT-13	480mm	250mm	75mm

Welded wire mesh tray (SPRI / ISO)
Code	Length	Width	Height	Code	Length	Width	Height
WITS-1	120mm	250mm	60mm	WITS-7	480mm	300mm	60mm
WITS-2	240mm	250mm	60mm	WITS-8	250mm	170mm	70mm
WITS-3	320mm	230mm	60mm	WITS-9	340mm	250mm	70mm
WITS-4	360mm	250mm	60mm	WITS-10	450mm	340mm	70mm
WITS-5	460mm	320mm	60mm	WITS-11	480mm	250mm	100mm
WITS-6	480mm	250mm	60mm
