Hot water boiler price

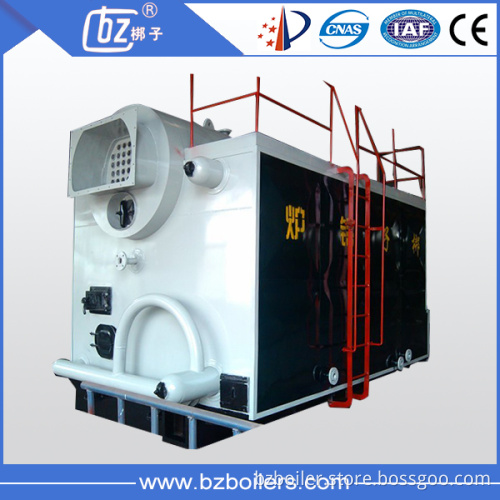

Hot water boiler price   Function: widely used for heating and industrial use. Some area like hotel, school, large and medium-sized enterprise and company, factory, apartment and so on use it for heating and shower   DZL water-fire tube coal fired hot water heating boiler feature: 1. Fire have 3 pass, fire stay longer time in boiler tube, make full use of fuel, at the same time, reduce the fuel gas’s temperature.  2. Spirally fire tube, fuel gas goes through the boiler spirally, this will prolong the residence time of gas inside the drum  3. Arched Tube plate, reduce the temperature of front tube plate, it is safe when we use it. 4. Hot water boiler unique feature: As to the hot water boiler, DZL has a special technology back water, just our factory can do it, when the water pass the boiler to the bottom container, the pressure pull the water to flow quicker,with the help of inertia, the water flow wash the front boiler tube plate, so the temperature of front tube plate reduced, this product the boiler plate from cracking, and at the same time, increase the recycling of boiler water.  Technical parameters   Technical parameters

Projects	unit	DZL0.7-0.7	DZL1.4-0.7	DZL2.8-1.0	DZL4.2-1.0	DZL5.6-1.0	DZL7.0-1.0	DZL10.5-1.0	DZL14-1.0
rated thermal power	MW	0.7	1.4	2.8	4.2	5.6	7.0	10.5	14
rated outlet pressure	MPa	0.7	0.7	1.0	1.0	1.0	1.0	1.0	1.0
rated outlet water temperature	℃	95	95	95	95	95	95	95	95
rated inlet water temperature	℃	70	70	70	70	70	70	70	70
heating area	s.m.	23.6	43.1	95.6	146.8	175.5	220.3	368.7	431.6
active  grate area	s.m.	2	3.6	5.29	7.4	9.2	12.7	16.11	21.3
fuel	coal, biomass, biomass pellets, pellets, wood chips, wood pellets, sawdust, solid fuel, multi fuel, dual fuel...etc
coal consumption	kg/h	190	377	751	1099	1400	1853	2250	2980
exhaust gas temperature	℃	143	154.6	147	130	152	154	148.9	158
design efficiency	%	78.8	78.35	78.8	81	80.8	79.9	80.89	80.7
max transport weight	t	15	19	30.5	up 28 below7.5	up 32 below11	up 40  below32	up 32 below 29	up 32 below 37

    Company Information 1, Spirit: Supply Reliable & High Efficient Heating System. 2, Produce Capacity:  More Than 1000 Sets Of Boilers (5000 T/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, D2 Pressure Vessel Manufacturer. 3, Certification:All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 4, Business Promise:Each Boiler System Parts Is From First Class Brand All Over The World or China. 5, Quality Strict monitor. From The Material, Welding, To Finished Boiler Shipment; From Project Establishment, Drawing Design, To Final Audit. Advanced automatic welding with 100% passed penetrate X-Ray inspection. 6, User: We Are The Stable And Long Term Supplier Of Many Top 500 Groups All Over The World. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, Etc,. We are looking for long terms cooperation boilerusers,distributors, importers, agents worldwide! Working room   Customers   Related Products Boiler main product coverage:   1. WNS series steam boiler 1-20 ton/hour, hot water boiler 0.7-14MW
2. SZL series quick assembly boiler: 4 ~ 25 T/h steam boiler, 1.4 ~ 14 MW pressure-bearing hot waterboiler;
3. DZL series chain grate boiler: 1 ~ 25 T/H steam boiler, 0.7~ 17.5 MW hot water boiler;
5. Biomass fired boiler: 1 ~ 25 T/H steam boiler, 0.7~ 17.5 MW hot water boiler;
6. AAC block plant : 50000-250000m^3
7. Pressure vessel products: Reaction Kettle, AAC Autoclave, Gas Tank ,etc   FAQ Q1: How to install a boiler? A1: Bangzi Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance   Q2:How many years is the boiler’s life span A2: The boiler is designed for 10years life span, but under good maintenance, usually the boiler can use at least 16years, Bangzi Boiler provide full life after-sales service to each sold boiler   Q3: How to choose a boiler model? A3: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, BangziBoiler will suggest a suitable model based on your usage   Q4: How is the warranty term? A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.    Contact
