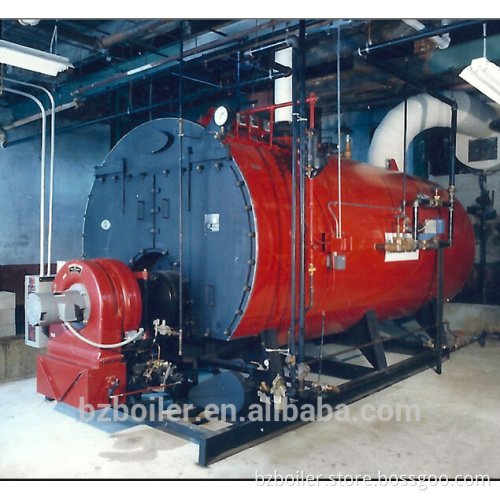

  Hot water boiler gas water boiler coal water boiler automatic hot water boiler heating supply water boilers     WNS hot water WNS series which are boiler of horizontal three pass fire tube with internal combustion. New design with structure of circular furnace wet back and larger volume burning room which can enhance burning efficiency and reduce the emission of Nox. Gas with high temperature is scouring the fire tube the second and third pass in turn. Then the gas is blown into atmosphere through chimney from the back smoke chamber. It used specifically thermal insulation material to lessen the heat loss. It is easy for maintenance due to install the hole for people and hand inside to clean.   General features of WNS series boiler: 1.    horizontal , gas & oil fired , water tube, industrial and low pressure; 2.    wetback and three-backhaulstructure design; 3.    With high efficiency economizer, the thermal efficiency can reach more than 90%. 4.    The spring-loaded type explosion door ensures the boiler safety 5.    The removable smoke boxfacilitates the maintenance 6.    Internal micro positive pressure combustionreduces the low temperature corrosion. 7.    Equipped with protection devicesfor overheating, overpressure, lacking water, leak detection, flameout, etc. This ensures the boiler to operate safely and efficiently. The product advantage: 1.    Subulate furnace and corrugated furnace combination   Function: (1) Make the structure more compact; (2) improve the thermal efficiency; (3) relieve the expansion and contraction 2.    Smooth tube and spirally corrugated tube combination   The smooth tube Function: Prevent the exhaust from condensing inside the boiler to prolong its service life ;   The spirally corrugated tube Function: (1) relieve the expansion and contraction; (2) Heat transfer enhancement;; (3) clean groove by itself.   3.    The furnace sits in line with the combustion Function: (1) Make the structure more compact; (2) prolong its service life.

Projects		Unit	WNS0.7	WNS1.4	WNS2.8	WNS4.2	WNS7.0	WNS10.5	WNS14
Rated thermal power		MW	0.7	1.4	2.8	4.2	7.0	10.5	14
rated outlet water pressure		Mpa	0.7	0.7	1	1	1	1.25	1.25
rated inlet water temperature		°c	70	70	70	70	70	70	70
rated outlet water temperature		°c	95	95	95	95	95	95	95
quantity of circulating water		t/h	24	48	96	144	240	200	266
body heating surface		m²	23.6	50	101.6	146	215	333	415
design thermal efficiency		%	91.7	91.8	91.9	91.9	91.9	92.3	92.2
net weight of boiler		t	5.1	8.2	13.1	18.5	25	36.8	45.1
Full water volume of boiler		t	2.9	5	8.8	11.3	19.1	24.3	30.9
Total boiler weight with full water		t	8	13.2	21.9	29.8	44.1	61.1	76
fuel consumption	natural gas	Nm/h	72.5	145	289	429.5	712	1054.5	1398.6
	diesel	kg/h	62	124	247	371	611	893	1188.6

  DZL hot water General features of the DZL series hot water boiler: Low pressure, horizontal, industrial, coal fired, fire tube, automatic chain grate steam boiler. The rated evaporation is between700kw to 14000kw. Product advantage: 1.       Spirally corrugated tube Function: (1) Heat transfer enhancement; (2) Improve the suppleness to avoid the tube plate cracking; (3) Clean groove itself. 2.       Arched tube plate Function:  (1) reduce the thermal stress of weld; (2) improve the tube plate suppleness; (3) simplify the structure and save the boiler room space. 3.       Complete protection device Function: deal with the situation of overpressure, over-temperature, water shortage and flameout. 4.       Up-tube layout Function: (1) Avoid the bulging on boiler drum; (2) Promote the water cycle (3)clean the sediment in the boiler bottom. 5.       Airfoil flue Function: Lower the high temperature of tube plate flue gas. And then reduce the thermal load of the boiler bottom. 6.       The return water injector Function: Increase the reliability of the water circulation and avoid the booster caused by the poor circulation.   Product feature 1.       Low coal consumption and High thermal efficiency; 2.      Reasonable water cycling, large water capacity and spacious steam volume; 3.       Equipped with light chain belt assembly grate, blowing machine and draught fan. 4.       High automation, mechanical adjustment of water supply, high and low water level alarm; 5.       Low water and blowers interlocking protection; 6.       Mechanical operation of boiler coaling, slag discharging; 7.       Simple operation and quick installation.  Technical parameters

Projects	unit	DZL0.7-0.7	DZL1.4-0.7	DZL2.8-1.0	DZL4.2-1.0	DZL5.6-1.0	DZL7.0-1.0	DZL10.5-1.0	DZL14-1.0
rated thermal power	MW	0.7	1.4	2.8	4.2	5.6	7.0	10.5	14
rated outlet pressure	MPa	0.7	0.7	1.0	1.0	1.0	1.0	1.0	1.0
rated outlet water temperature	℃	95	95	95	95	95	95	95	95
rated inlet water temperature	℃	70	70	70	70	70	70	70	70
heating area	s.m.	23.6	43.1	95.6	146.8	175.5	220.3	368.7	431.6
active  grate area	s.m.	2	3.6	5.29	7.4	9.2	12.7	16.11	21.3
fuel	coal, biomass, biomass pellets, pellets, wood chips, wood pellets, sawdust, solid fuel, multi fuel, dual fuel...etc
coal consumption	kg/h	190	377	751	1099	1400	1853	2250	2980
exhaust gas temperature	℃	143	154.6	147	130	152	154	148.9	158
design efficiency	%	78.8	78.35	78.8	81	80.8	79.9	80.89	80.7
max transport weight	t	15	19	30.5	up 28 below7.5	up 32 below11	up 40  below32	up 32 below 29	up 32 below 37

        Company Information   Workshop We have totally five workshops which covers an area of nearly 3600 square meters and employ 600 person including more than 100 engineers and technicians. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certification.   FAQ Q1: How to install a boiler? A1: Bangzi Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance   Q2:How many years is the boiler’s life span A2: The boiler is designed for 10years life span, but under good maintenance, usually the boiler can use at least 16years, Bangzi Boiler provide full life after-sales service to each sold boiler   Q3: How to choose a boiler model? A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, BangziBoiler will suggest a suitable model based on your usage.   Q4: How is the warranty term? A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.  Customers Our products have been exported to many countries all over the world, including Russia, Southeast Asia,  South America, North America, Africa, Mid-East, Romania, Mengolia, Vietnam, Indonesia, etc. The quality of products and our after-sale services have won us good reputation in the oversea market. So we warmly welcome cusotmers to pay a visit to our factory so that they will have a better idea about us and our products. Contact information:   Leeson Zhou   Cell/Wechat/Whatsapp: +86 13833185003   Skype: jayzhou860607
