        wood pellet boiler thermal fluid hot oil boiler Skype:aaronyang1004 Whatsapp:+8615533912593 Wechat:Aaron2011yang aaronyang2009(at)sina(dot)com/ aaron(at)bangziboiler(dot)com   Company Information   YGL YGL series 240KW-1400KW coal /biomass fired thermal oil boiler 1.Designed with horizontal, three passes, all-wet back structure.   2.Fire tubes are surrounded by water, and these design making efficient up to 84%.  3.Threaded tube: Strengthen the heat transfer, increase the oil steam boiler heat efficiency  4.Big combustion room design: increase furnace heating area, decrease oil steam boiler size, and reduce the emission of the Nox Corrugated hearth make the oil steam boiler safer.  Application of YGL series 240KW-1400KW coal /biomass thermal oil boiler Widely used in chemical industry, plastics industry, coatings and automotive industries, bitumen industry, construction equipment industry, shipbuilding industry, apparel clothing, washing, ironing, the pharmaceutical industry, biotechnology, food industry, sauna and beauty, hotels, restaurants, sports, fitness and other places where need energy.
Features of YGL series 240KW-1400KW coal/biomass fired thermal oil boiler
·Horizontal three-pass central symmetry low level layout
·Full wet-back structure
·Corrugated furnace
·Full docking welded structure
·Front and rear smoke box double seal structure
·Furnace exit installation of blast doors
·Automatic intelligent control
YGL series 240KW-1400KW coal/biomass fired thermal oil boiler controlling and safety systems 1. The controlling and safety systems are interlocked in an electric control cabinet (ECC). 2. The burning and security operation are controlled by ECC. It has the following basic functions :
Protection program of automatic ignition
Locking and protection program of operation
Protection program of extinction
Protection program of completion
Protection program of water pumps (pressure loss)
Protection program of ignition failure
Protection program of combustion engine malfunction
Protection program of combustion engine flameout
Protection program of gas leakage
3. Alarm system
Sound-light alarm of steam pressure and super-high steam pressure
Sound-light alarm of high and low limit water level

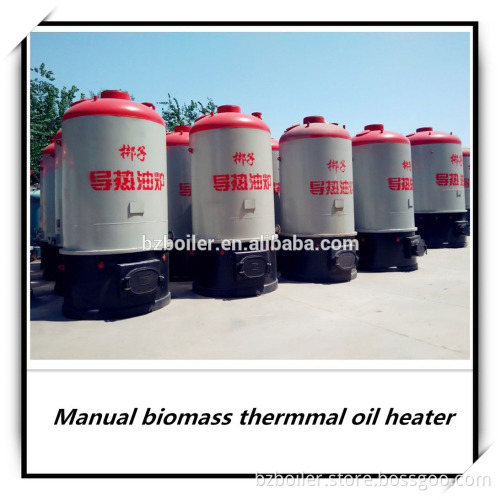

Sound-light alarm of pressure loss in water pumps YGL series 240KW-1400KW coal/biomass thermal oil boiler working principle  YGL series coal /biomass thermal oil boiler technical parameter Note: for this company is continuously developing technological parameters can be changed without notice,technical parameters shall prevail to drawings. YGL series 240KW-1400KW thermal oil boiler pictures
