YLL coal fired chain grate conduction oil boiler for Bangladesh market

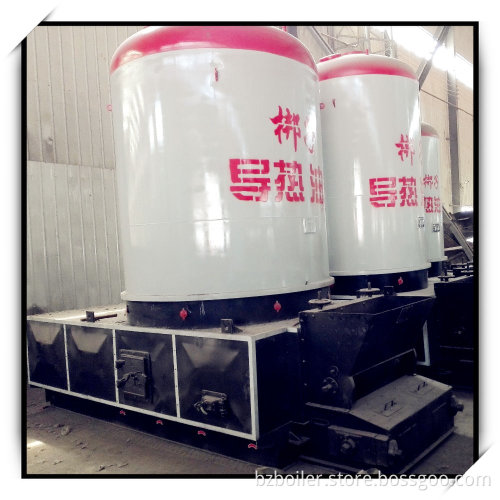

YLL coal fired chain grate conduction oil boiler for Bangladesh market Product description YLL thermal oil boiler   YLL series thermal oil boiler is vertical assemble type liquid forced circulation boiler. It takes coals as fuel. With the compact heating surface (radiant heating surface and convection heating surface), the boilers adopt multilayer closely-arranged coils and ceiling coils so as to lay out enough heating area. The flue gas experiences many rounds of heat transfer in the “S-Form”, the heat efficiency is high. Features: 1      Take multilayer closely aligned coils as heating area Heating area is the multilayer closely aligned round coils. Heating area is arranged sufficiently and absorbs the heat from the multi-passes flue gas. The coefficient of heat transfer is very high. 2      The ceiling coil The ceiling coil on the top of the radiant heating surface can protect the furnace top from being burned out. 3      Compact structure The boiler is in compact structure, which greatly saves the space of boiler room. 4      Waste heat boiler or air preheater The waste heat boiler (or air preheater) is mounted to recover the energy in the exhaust gas so as to improve the efficiency 5      Rational medium procedure The medium enters from the low position and flows out from the high position. In this way, the exhaust gas can be discharged out of the boiler smoothly. 6      Good exhaust gas outlet position The exhaust gas outlet sits right above the boiler, which can balance the heating surface and rationalize the structure. 7      Special furnace arch and furnace grate design 8      Convenient installation The installation is very convenient and flexible, just need to place the boiler on the foundation.   Technical Parameters

Projects	Units	YLL-700	YLL-1000	YLL-1200	YLL-1400	YLL-2000	YLL-2400	YLL-2900	YLL-3500
rated thermal power	kw	700	1000	1200	1400	2000	2400	2900	3500
rated working pressure	MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
highest working temperature	℃	320	320	320	320	320	320	320	320
Oil volumn in the boiler	m³	0.55	0.7	0.9	1.1	1.45	1.6	2.2	2.5
Cycle oil volume	m³/h	60	60	80	80	160	160	180	200
pipe diameter	DN	100	125	125	125	150	150	150	200
coal consumption	kgk/h	145	178	220	265	390	465	560	650
thermal efficiency	%	more than 76%				more than 78%
fuel	coal, biomass, pellets, wood chips, wood pellets, biomass pellets, sawdust, solid fuel, dual fuel...etc
transportation weight	t	14.5	15.3	16.8	17.5	20	24.5		37.76

          Accessories   production courses     Company Information Hebei Gold Bangzi Boiler Co., Ltd, as a large-scale 30 years professional manufacturing enterprise for A level boiler and D2 level pressure vessel, is a 30 years factory with ISO certification . The factory specializes in the design, development , production and marketing of boilers and pressure vessels. Our products cover coal fired, biomass fired, gas and oil fired hot water boiler, steam boiler, thermal oil boiler, waste heat boiler and devulcanizer...etc.         Certifications   customers Exhibition Customers:  Factory Visiting Customers     Our Services   Pre-sale service:
1.According to the customer needs to recommend relative models machine.
2. According to the customer's special requirements to customize equipments.
3. Our engineers will supply the site and equipment drawing.   After-sale service:
1. According to the purchase contract, our company can send engineers to help  installation.
2. The quality guarantee is 1 year, not including the wearing parts.
3. Collecting customer feedback, solve the real problems faced by customers.
4. Our company supply spare parts all the year round.     Besides, in the manufacturing process, clients are quite welcome to our factory to examine the actual quality and to carry out the follow-up inspection.     If any interest in our products, just please contact with me directly:     Name: Linda Xu   Skype: xuwenjuan86 Tel: +86-18630196461 Email: linda at bangziboiler.com
