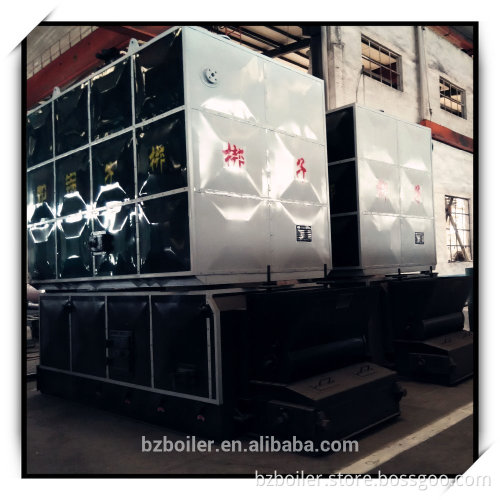

ylw horizontal coal fired thermal oil heater for paper making industry

ylw horizontal coal fired thermal oil heater for paper making industry   As a 30 years manufacturer, we have plenty of experiences in coal fired industrial thermal oil boiler. Give me a chance , we will design the best scheme for your industry. Product Description while as a 30years manufacture,we also have our unique feature: 1.fourth-backhual heating; 2.unique thermal insulation technical; 3.The heating surface consists of the double layer coils so as to lay out enough heating area ; 4.Ceiling tube reduce s the resistance off the medium inside the heater,so as to ensure rhe safer usage of the heat transfer oils. 5.The ceiling coil on the top of the radiant heating surface can protect the furnace top better and prevent it from being burned out. FAQ: How many capacity you want? to capacity we always use KW or Kcal and 700KW=600,000Kcal. we have 700KW-7000KW. The temperature you need? usually the maximum termperature is 320 degree,if you need higher temperature we will design for you . The industy you suse for? Dedicated produce thermal oil boiler 30 years, we have plenty of experience in many industy,so we can make the best scheme for you.   Technical parameters

projects	units	YLW-700	YLW-1000	YLW-1200	YLW-1400	YLW-2000	YLW-2400	YLW-2900	YLW-3500	YLW-4700	YLW-6000	YLW-7000	YLW-10000	YLW-18000
rated thermal power	kw	700	1000	1200	1400	2000	2400	2900	3500	4700	6000	7000	10000	18000
rated working pressure	MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
highest working temperature	℃	320	320	320	320	320	320	320	320	320	320	320	320	320
oil volumn in the boiler	cube meters	0.52	0.66	0.85	1.09	1.33	1.6	2.2	2.6	3.8	4.7	5.24	6.3	12.3
cycle oil volumn	cube meters/h	60	60	80	100	160	160	180	200	300	360	400	400	1000
pipe diameter	DN	100	125	125	125	150	150	150	200	200	250	250	300	350
applicable fuel	Coal, biomass, biomass pellets, pellets, wood chips, wood pellets, wood, sawdust, solid fuel...
thermal efficiency	%	more than 76%					more than 78%				more than 79%			more than 80%
coal consumption	kg/h	145	180	220	265	390	465	560	650	890	1120	1380	2200	3320

      Something about thermal oil boiler:       Workshop We have totally five workshops which covers an area of nearly 3600 square meters and employ 600 person including more than 100 engineers and technicians. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certification.   YLW produce process certificate   the factory   customer   Contact
