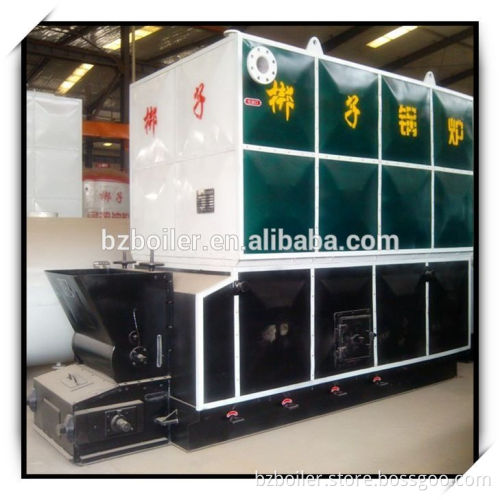

Chemical plant use thermal oil boiler

Chemical plant using heat conduction oil furnace   1. Basic properties:  The output: thermal oil      The fuel: coal/biomass/solid fuel  The thermal capacity: 700kw-18000kw 2. The usage:  Of course, this kind of boiler also could be used on many other industries.     3. The advantages of products:    1. Medium: heat tranfer oil   (1)Low pressure and high temperature; (2)the heat transfer oils enter into the boiler from the low position and flow out from the high position; (3)the gas produced during the operation can be discharged out of boiler smoothly.   2. Heating surface: monolayer (double layer) coils   (1)lay out enough heating area; (2)reduce the resistance of medium in the furnace; (3)reduce thermal load on the coil surface; (4)ensure the safer usage of the heat transfer oils.   3. Top of heating surface: roof tube   protect the furnace top better and prevent it from being burned out.       4. Grate and furnace arch   (1)with special design, the boiler can achieve the independent regulation on air volume; (2)make the sufficient and full combustion; (3)a wide range of coal coulde be used as fuel.    5. Installation   (1)it is convenient to install the boiler: only put the upper body and the below combustor together; (2)the installation period is very short    4. Technical parameter table:  Note: Attributed to the continuous improvement of product performance, our company will reserve the rights of modification on words, patterns, and data without notice. PS: The boiler can be customized according to your requirements.   5. Structure  1. The monolayer closely arranged coils locate in the front of boiler body.   2. The snakelike coils locate at the back of boiler body. 3. Four backhaul heat transfer, enlarge heat transfer surface, high thermal efficiency. 4. The waste heat boiler (air preheater) is behind the boiler. 7. Flow chart   1. The fuel burns sufficiently and forms the high temperature flue gas, the energy of which is mostly absorbed by the radiant heating surface;   2. The gas enters into the convection heating surface to exchange heat and moves out of the boiler;   3. Then the gas passes through the waste heat boiler(air pre-heater) to release heat further, then passes the dirt remover;   4. The gas finally is sent into the funnel by induced draft fan and discharged into atmosphere.     Company Information Company Introduction 1, Spirit: Supply Reliable & High Efficient Heating System. 2, Produce Capacity:  More Than 1000 Sets Of Boilers (5000 T/H) Can Be Produced By us Per Year. Class A Boiler Manufacturer. Class A1, D2 Pressure Vessel Manufacturer. 3, Certification:All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 4, Business Promise:Each Boiler System Parts Is From First Class Brand All Over The World or China. 5, Quality Strict monitor. From The Material, Welding, To Finished Boiler Shipment; From Project Establishment, Drawing Design, To Final Audit. Advanced automatic welding with 100% passed penetrate X-Ray inspection. 6, User: We Are The Stable And Long Term Supplier Of Many Top 500 Groups All Over The World. Such As PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca Cola, Etc,. We are looking for long terms cooperation boilerusers,distributors, importers, agents worldwide!   Certifications   Our Services  Pre-sale service: 1.According to the customer needs to recommend relative models machine. 2. According to the customer's special requirements to customize equipments. 3. Our engineers will supply the site and equipment drawing.   After-sale service: 1. According to the purchase contract, our company can send engineers to help  installation.  2. The quality guarantee is 2 year, not including the wearing parts. 3. Collecting customer feedback, solve the real problems faced by customers.     FAQ   1.Q: Can you give us a quotation right now?     A: Of course ,we can. Please give us detailed technical data. Then we will make a  design and quotation for you as soon as possible.   2. Q: Can you make a design for us?     A: Yes, we can. What we supply is not only product, but also solution and design.   3. Q: Can you give us the technical drawing and data?     A: We will give you the overall dimension drawing for your plan and project. But  the detailed drawing and data will be sent you after we signed the contract and  confidentiality agreement.   4. Q: Do you provide after-sales service?     A: Yes, we do. This product is guaranteed up to one year from purchase unless  manmade damage.   5. Q: Can your engineer come to our place for installation guide?     A: Yes, we can. We will provide a video and document for installation. If you still  have problem, we will send our engineer oversea for installation guide.   Contact Person
