Automatic controlled oil fired thermic fluid boiler manufacturers

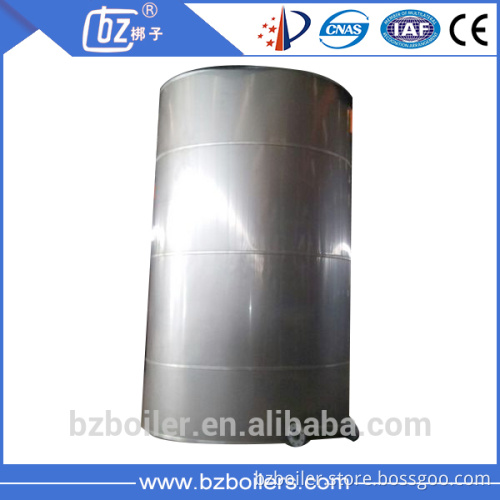

700kw  Automatic controlled oil fired thermic fluid boiler manufacturers   product description Brief introduction YQL series thermal oil boiler is a kind of vertical type forced circulation organic heat carrier boiler. It takes diesel, gas, town gas and oil as fuel and takes closely-arranged coils as heating surface including radiant heating surface and convection heating surface. For large-capacity boiler, the ceiling coils are equipped to ensure the compact structure.   The flue gas goes in three pass and heat recovery boiler or air-preheater can be allocated to save energy and improve its thermal efficiency well. New-type insulation method is taken to reduces the thermal loss. Features: 1.    Its heating surface is made up of closely-arranged coils; 2.    The boiler can take diesel, gas, town gas and oil as fuel; 3.    Adopts automatic computer control to achieve DCS control and remote control; 4.    The burner and thermal load can be adjustable automatically. 5.    This boiler can be widely used in textile, chemical, wood, oil, rubber, plastics, food, paper, pharmaceutical, reduction, concentration, dehydration, forest product industry…etc.   Technical parameters

Projects	units	YQL-700Q	YQL-1000Q	YQL-1400Q	YQL-2000Q	YQL-2400Q	YQL-2900Q	YQL-3500Q	YQL-4700Q	YQL-6000Q	YQL-7000Q	YQL-10000Q	YQL-12000Q	YQL-14000
Thermal power rating	kw	700	100	1400	2000	2400	2900	3500	4700	6000	7000	10000	12000	14000
Design pressure	mpa	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
highest   medium pressure	°c	320	320	320	320	320	320	320	320	320	320	320	320	320
inner  medium capacity	m3	0.51	0.6	0.94	1.54	1.9	2.37	3.54	4.34	6.46	7.83	12.5	14	15
cycle volume of medium	m3/h	40	60	80	160	160	180	200	250	350	350	400	500	600
pipe connection diameter	mm	80	125	125	150	150	150	200	200	250	250	300	350	350
thermal efficiency	%	90	90	90	90	90	90	90	90	90	90	90	90	90
heating surface area	m²	39.84	50.5	72.29	91.67	115.68	138.65	163.21	206.84	249.71	300.73	395	480	570
weight	t	5.5	7	9.8	12.7	14.6	17.5	23.2	27	33.6	40	48.5	60	86
transport size	length        (mm)	3793	4044	4724	5187	5870	6115	6766	7695	8424	9096	10000	11500	14100
	width (mm)	1830	1956	2161	2449	2560	2664	3058	3135	3405	3631	4010	4180	4250
	height (mm)	1915	2007	2217	2428	2506	2707	3018	3088	3388	3593	4100	4250	4300

  Workshop We have totally five workshops which covers an area of nearly 3600 square meters and employ 600 person including more than 100 engineers and technicians. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certification.   Customers Our products have been exported to many countries all over the world, including Russia, Southeast Asia,  South America, North America, Africa, Mid-East, Romania, Mengolia, Vietnam, Indonesia, etc. The quality of products and our after-sale services have won us good reputation in the oversea market. So we warmly welcome cusotmers to pay a visit to our factory so that they will have a better idea about us and our products.   Certificates We have the ISO9001 certificate and the National Grade-A boiler certificate, also with the Green product certificate and many Patent for invention certificates, etc.   Usage

No.	industry	usage
1	Chemical industry	polymerization industry,oil industry,reaction tank,distillation,enrichment,  oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2	Plastic industry	plastic foam and squeeze to finalize the design,
3	Textile industry	resin stenters,dyeing machine and the dry room,high temperature machine,roller
4	Rubber industry	cooking,dry,vegetable oil refining
5	Wood industry	heating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6	Paper industry	multi-layer cardboard of packed carton box,dying and desiccation
7	Others	heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc
