China chain grate stoker industrial thermic oil boiler prices

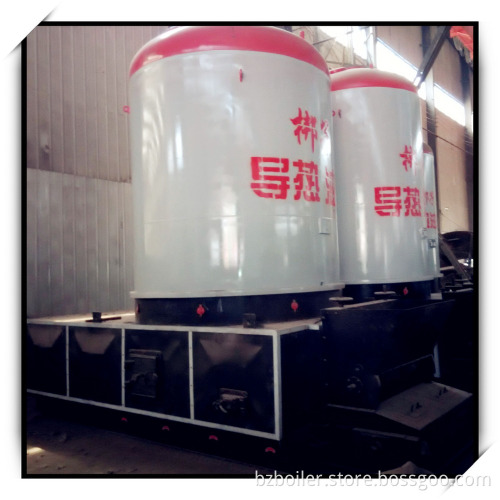

  China chain grate stoker industrial thermic oil boiler prices product description YLL series thermal oil boiler is vertical assemble type liquid forced circulation boiler. It takes coals as fuel. With the compact heating surface (radiant heating surface and convection heating surface), the boilers adopt multilayer closely-arranged coils and ceiling coils so as to lay out enough heating area. The flue gas experiences many rounds of heat transfer in the “S-Form”, the heat efficiency is high.   Features: 1      Take multilayer closely aligned coils as heating area Heating area is the multilayer closely aligned round coils. Heating area is arranged sufficiently and absorbs the heat from the multi-passes flue gas. The coefficient of heat transfer is very high. 2      The ceiling coil The ceiling coil on the top of the radiant heating surface can protect the furnace top from being burned out. 3      Compact structure The boiler is in compact structure, which greatly saves the space of boiler room. 4      Waste heat boiler or air preheater The waste heat boiler (or air preheater) is mounted to recover the energy in the exhaust gas so as to improve the efficiency 5      Rational medium procedure The medium enters from the low position and flows out from the high position. In this way, the exhaust gas can be discharged out of the boiler smoothly. 6      Good exhaust gas outlet position The exhaust gas outlet sits right above the boiler, which can balance the heating surface and rationalize the structure. 7      Special furnace arch and furnace grate design 8      Convenient installation The installation is very convenient and flexible, just need to place the boiler on the foundation. Technical Parameters

Projects	Units	YLL-700	YLL-1000	YLL-1200	YLL-1400	YLL-2000	YLL-2400	YLL-2900	YLL-3500
rated thermal power	kw	700	1000	1200	1400	2000	2400	2900	3500
rated working pressure	MPa	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
highest working temperature	℃	320	320	320	320	320	320	320	320
Oil volumn in the boiler	m³	0.55	0.7	0.9	1.1	1.45	1.6	2.2	2.5
Cycle oil volume	m³/h	60	60	80	80	160	160	180	200
pipe diameter	DN	100	125	125	125	150	150	150	200
coal consumption	kgk/h	145	178	220	265	390	465	560	650
thermal efficiency	%	more than 76%				more than 78%
fuel	coal, biomass, pellets, wood chips, wood pellets, biomass pellets, sawdust, solid fuel, dual fuel...etc
transportation weight	t	14.5	15.3	16.8	17.5	20	24.5		37.76

  production courses     Company Information   Workshop We have totally five workshops which covers an area of nearly 3600 square meters and employ 600 person including more than 100 engineers and technicians. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certification.   Customers Our products have been exported to many countries all over the world, including Russia, Southeast Asia,  South America, North America, Africa, Mid-East, Romania, Mengolia, Vietnam, Indonesia, etc. The quality of products and our after-sale services have won us good reputation in the oversea market. So we warmly welcome cusotmers to pay a visit to our factory so that they will have a better idea about us and our products.   Certificates We have the ISO9001 certificate and the National Grade-A boiler certificate, also with the Green product certificate and many Patent for invention certificates, etc.   FAQ Q1: How to install a boiler? A1: Bangzi Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance   Q2:How many years is the boiler’s life span A2: The boiler is designed for 10years life span, but under good maintenance, usually the boiler can use at least 16years, Bangzi Boiler provide full life after-sales service to each sold boiler   Q3: How to choose a boiler model? A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, BangziBoiler will suggest a suitable model based on your usage.   Q4: How is the warranty term? A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.  Contact
