Rubber Dynamic devulcanizer Cheaper Recycled Rubber Devulcanizer 4M3 / 6M3 / 8M3/ 10M3 /

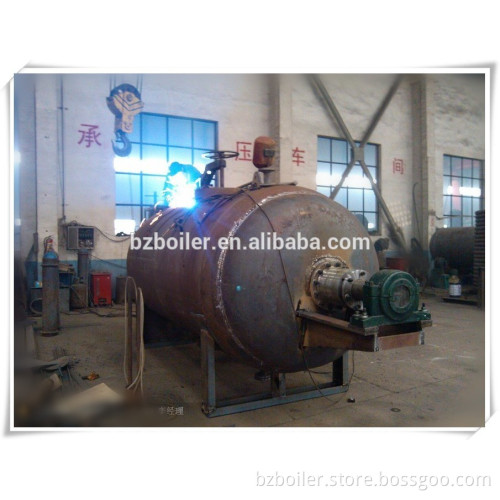

                                                   Skype: jackmase   Grade a quanlification  factory      USAGE: This product is used for that in order to reach even and effective desulfidation for rubber powder, put pulverous crosslinked rubber, softener, activator and water into the pot ,heat hermetically and mix contlnuously, adopted key equipment for the technology of high temperature dynamic desulfidation.   Characters: 1.This product is a horizontal pressure vessel Type II, heats up with the heat conduction oil. Customers could select two ways-automatic and manual operation for pot gate opening and closing. Upside of the pot is charge port, and downside is discharge port. 2.Full auto-dynamic pot opening and closing gate is controlled by hydraulic pressure. Adopt manual mechanical alternate out hand opening and closingate for the manual dynamic opening and closing gate. Above two dynamic pots are linked to the zero pressures witch to ensure safety. Adopt JZQ series reducer through douole row chain wheel rotating or direct driving for the blender, positive and negative rotating could be controlled automatically. 3.The shape of mixing propeller is assorted of ribbon and mural. The parts of pressure vessel are designed and manufactured according to BG150-98 “Steel Pressure Vessel” and have been inspected examination and approved by. Hebei province Technology Inspection Office of Boiler and Pressure Vessel.

Parameter Content	Model
	ZT-3.3R		ZT-4.5R	ZT-6R		ZT-8R
Design Pressure	2.1Mpa		2.1Mpa	2.1Mpa		2.1Mpa
Working Pressure	1.8Mpa		1.8Mpa	1.8Mpa		1.8Mpa
Design Temperature	3000C		3000C	3000C		3000C
Working Temperature	2090C		2090C	2090C		2090C
Active Volume	3.0m3		4.5m3	6m3		8m3
Rotate Speed of Blender	16r/min		16r/min	15r/min		15r/min
Jacket Volume	0.72m3		1.04m3	1.6m3		1.8m3
Design Pressuer of Jacket	0.5Mpa		0.5Mpa	0.5Mpa		0.5Mpa
Working Pressure of Jacket	0.3Mpa		0.3Mpa	0.4Mpa		0.4Mpa
Heating Method	Heat conduction oil
Hear Exchange Area	8.18m2	12.55m2		15m2	17m2
Motor Power	15kw	18.5kw		18.5kw	18.5kw

    Product Description     Company Information Hebei Gold Bangzi Co.,Ltd. was founded in 1986, and its trademark “BZ” was identified as the famous mark in 2010. It won the titles of the new high-tech enterprise of Hebei Province in 2011 and the famous-brand products of Hebei Province in 2012. Now it has become a large-scale designated national boilers manufacturing enterprise for the A level boilers and pressure vessels of the D2 level.   All the products of our company have passed the examination and approval of the environmental protection industry association in Hebei Province, met the Standards of Boiler Pollutant Discharge (GB13271-2001), obtained the qualification certificate of green products and won the trust of customers.   We have  horizontal and vertical type water boiler, steam boiler and thermal oil heating boiler; coal fired and gas/oil fired boiler, biomass or wood pellet fired thermal oil boiler, devulcanizer, briquette drying equipment and lignite drying equipment, also have the antibiotic waste mycelium, etc.
