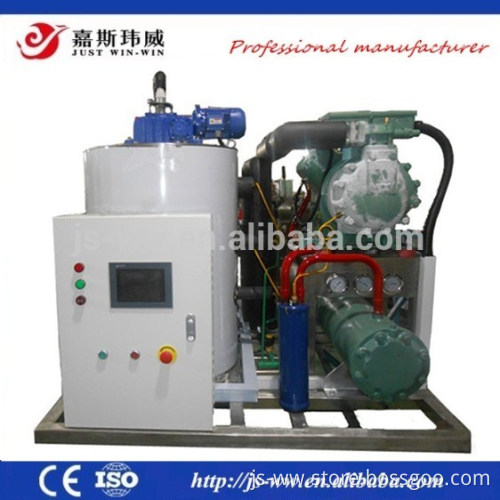

20 ton flake ice machine commercial price/flake ice machine for fish market/ice making machine industrial

20 ton flake ice machine commercial price/flake ice machine for fish market/ice making machine industrial

Get Latest Price

Delivery Time:: 25 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Features on flake ice machine 1.Flake ice production range: 200 kg - 60 tons / day 2.Evaporator: Made with a sandwich stainless steel (or carbon) vertical cylinder, the refrigerant evaporated in the sandwich, water spraying in the cylinder wall and then rapid freezing, by continuously rotating stainless steel skates squeeze the ice, excess water back to the tank through the baffle, recycling once more.
3.Ice features: Ice shape: ice irregular scaly. Thickness 1.5-2.5MM. No sharp edges and corners,contact area larger, cooling faster.
4.Multi spiral cutter: Reducing equipment energy consumption, no friction with cylinder wall in avoild of refrigerant leaks.
Steel with chrome plating,or quality 304, / 316 stainless steel, ensure good heat transfer efficiency.
5.PLC control, less failure, maintenance is simple and convenient.

Technical parameters Parameters on flake ice machine

Model	Maximun Capacity(kg)	Ice shape	Storage Capacity(kg)	Dimension (WDH)mm	Power	Refrigerant	Condenser
JWF-0.2	200		150	730760600	220V1100W	R22
JWF-0.3	300	Flake ice	280	7608301750	220V1500W	R22/R404a	Air/Water
JWF-0.6	600		400	131010601550	220V/380V2400W	R22/R404a
JWF-1.0	1000		400	131010601700	380V3900W	R22/R404a
JWF-1.5	1500		400	1310970980	380V7080W	R22/R404a
JWF-2.0	2000		1000	155014002100	380V6700W	R22/R404a
JWF-2.5	2500		1000	155014002200	380V8500W	R22/R404a
JWF-3.0	3000		1200	165014602800	380V9800W	R22/R404a
JWF-4.0	4000		2000	175015501250	380V18.32kw	R22/R404a
JWF-5.0	5000		3000	175015501600	380V23.122kw	R22/R404a
JWF-6.0	6000		3000	175015501600	380V26.15kw	R22/R404a
JWF-8.0	8000		4000	253018301680	380V31.5kw	R22/R404a
JWF-10	10000		5000	253018301820	380V45.5kw	R22/R404a
JWF-15	15000		7500	310020901865	380V64kw	R22/R404a
JWF-20	20000		10000	*369520902050*	380V75.8kw	R22/R404a
JWF-25	25000		12500	369520902265	380V97.8kw	R22/R404a
JWF-30	30000		15000	388021202400	380V115.7kw	R22/R404a

service form Our service on flake ice machine

Payment	30% T/T as deposit and balance T/T before delivery.
Delivery	Approx 20 working days after receiving deposit.
Packag	Standard export container.
MOQ	1 SET
Warranty period	2 year after B/L date. Any failure occurred within the period due to our
	responsibility, we'll supply you the spare parts for free, and permanent technical
	support & consultation all life for the block ice machines.
Note	Please inform us if you need any special inspection.
Guarantee	a.All ice systems delivered to customers are carefully examined and tested, with 72 hours trouble-free trial operation. b. All ice systems delivered are plug-in ready and well piped. c.All ice systems enjoy 24 months guarantee ever since B/L date.
Technical support	a. provides full technical support and training courses after equipment installation andcommissioning. *b. 724 hours phone assistance on technical support.**
Failure Claim procedures	a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure. b. Relevant pictures are required for failure confirmation. c. engineering and after-sales service team will check and form a diagnosis report. d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures

Our Services Workshop

Any demand on Flake Ice machine,pls contact us!
