High-Quality Backboard Racks for Courts

$9300.00 - $9500.00/

Min. Order:: 1

Min. Order:: 1

Transportation:: Ocean

Port:: Qingdao Port, Shanghai Port, Shandong Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	The monthly output is 500 unit
Supply Ability:	Stable supply chain, strict quality control, ISO certification, and efficient delivery
Certificate:	Fiba certified
HS Code:	95066210
Transportation:	Ocean
Port:	Qingdao Port,Shanghai Port,Shandong Port

Product Description

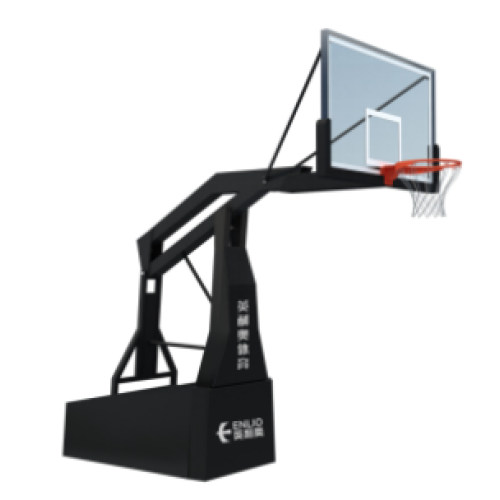

Basketball stand box dimensions: 2.2x1.1 meters (including the sheath 2.35x1.3), arm extension 2.45 meters (customizable 2.35 meters) (the sheath position is calculated as 2.35 meters).

The motor power is 2.2KW.

The base of the box is made by folding and welding 4mm steel plates on a dedicated edge folding machine, and 3mm steel plates are used as the upper cover plate of the box.

The basketball stand columns are welded together with square tubes of 180mmx120mmx3mm, 150mmx150mmx2.75mm, and 150mmx100mmx2.75mm.

The boom is welded with 150mm*150mm*2.75mm square tubes. The rotating part of the basketball stand column and the connecting part of the boom head are both made of high-quality precision cast steel parts.

The rear pull rod of the basketball stand is welded with 80mm*80mm*2.75mm square tubes and 180mm*80mm*3mm precision drawn square tubes. The upper pull rod is made of 48mm diameter and 3mm wall thickness round tubes.

The front column, base and extension arm of the basketball hoop are equipped with special protective covers, which can effectively protect athletes from impact.

Product structure principle: The electric hydraulic basketball stand adopts a microcomputer control system and is equipped with a basketball stand lifting system, a wheel telescopic mechanism, electrical and hydraulic systems.

When in use, the motor can be started by connecting to a 220V, 50HZ single-phase power supply, driving the oil pump. Through the microcomputer control system, the "function" is converted, and the oil cylinder immediately starts to extend and contract, thereby raising and lowering the ball frame column.

Rebound specification:

1800x1050 (mm), equipped with the internationally recognized high-strength safety glass backboard (12mm thick), it features high transparency, good weather resistance, anti-aging, corrosion resistance, and is not easy to blur. The basketball board glass meets the 3C certification standard, and the lower edge side of the backboard is covered with high-grade polyurethane protective rubber strips, which can effectively protect athletes from injury when they dunk.

The new national standard basketball hoop is made of φ20 solid round steel and has good bending resistance.

The spring is made of thickened high-grade spring steel and meets the standards of international competitions.
