Welded Wire Mesh

Specifications Welded Wire Mesh

1.Material:Stainless steel wire ,high quality low carbon steel wire etc.

2.Mesh:1/4"~2".

  Product Description Specifications · Heights: 2.4m, 3.0m, 3.2m, 4.0m, 5.0m  · Mesh Aperture: 200mm x 50mm  · Special panels 200mm x 100mm for top section only  · Horizontal Wires: 8mm · Vertical Wires: 6mm  · Post Centres: 2500mm    Benefits · Flush Safety Edges  · Designed for high usage  · Excellent & rigid rebound system  · Low maintenance  · Good visibility for spectators  · No cross rails needed  · Easy to install    Applications · General games areas  · Basket Ball Courts  · Football Pitches  · Hockey  · Urban Sports Areas  · MUGA Courts

Specification List of Welded Wire Mesh
Opening		Wire Diameter (BWG)
Inch	mm
1/4"x1/4"	6.4mmx6.4mm	22,23,24
3/8"x3/8"	9.5mmx9.5mm	19,20,21,22
1/2"x1/2"	12.7mmx12.7mm	16,17,18,19,20,21,22,23
5/8"x5/8"	16mmx16mm	18,19,20,21
3/4"x3/4"	19mmx19mm	16,17,18,19,20,21
1"x1/2"	25.4mmx12.7mm	16,17,18,19,20,21
1-1/2"x1-1/2"	38mmx38mm	14,15,16,17,18,19,20,21
1"x2"	25.4mmx50.8mm	14,15,16
2"x2"	50.8mmx50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.



Welded Mesh for Fence
Opening		Wire Diameter (mm)
Inch	mm
2"x3"	50mmx75mm	1.65mm,2.00mm,2.65mm
3"x3"	75mmx75mm	2.6mm,2.4mm,2.1mm,1.8mm,1.65mm
2"x4"	50mmx100mm	2.1mm,2.5mm
4"x4"	100mmx100mm	2.0mm,2.5mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

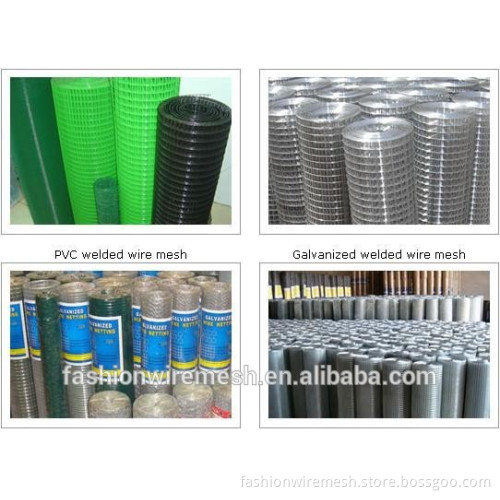

Specification of PVC Coated Welded Wire Mesh
Opening		Wire Diameter (BWG)
Inch	mm
1/2"x1/2"	12.7mmx12.7mm	16,17,18,19,20,21
3/4"x3/4"	19mmx19mm	16,17,18,19,20,21
1"x1"	25.4mmx25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

      Company Information Anping County Fashion Metal Wire Mesh Product Co., Ltd.  which is located in the "China Wire Mesh Industry Base"---Anping county Hebei province.
which gather scientific research,production, operation and sale.   1.The company has passed ISO9001:2000 quality system certification.
2.Quality assured manufacturer of wire mesh in China.
3.Dedicated to our customer's satisfaction and success. Our Services 1.Provide free sample for customer. 2.Provides the high quality product and the consummation post-sale service wholeheartedly for the customer.
3.Any question,pls feel free to contact me.
   Hope to have chance to cooperation with u and create brilliant tomorrow.
