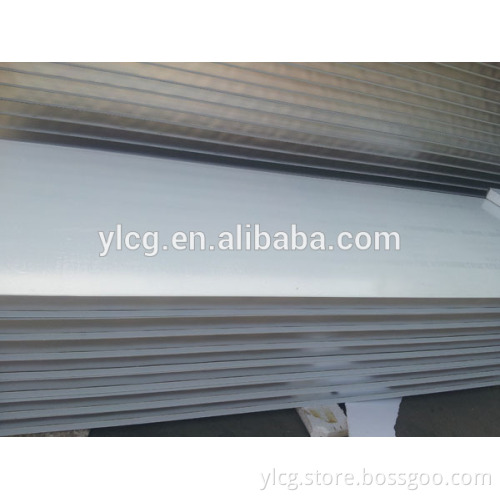

aluminum composite wall panel

Product Description aluminum composite wall panel   1. Heat Insulation 2.Fire-proof,Fire-resistant 3.Soundproof,Water-proof 4.Fast installation 5.High strength and bear capacity

Thickness:	40mm,50mm, 75mm, 100mm, 150mm,200mm
Material of the panels	composed of steel sheets and polystyrene board
Density of Core Material	8-25 kg/cbm
Width of the panels	950mm for wall and 960mm/980mm for roof
Panels type	Wall panel and Roof panel
Surface Texture and Appearance	Small wave, Flat, Embossment, Big rib
Heat Insulating Material	Polystyrene foam
Thickness of aluminum sheet	0.3-0.8mm
Color of the coating	Original aluminum color
Type of sheet Coating	PVDF, HDP, SMP, PE
Type of Base steel sheet	Hot-dip galvanized, Al-Zn coated



Characteristic	Good temp-keeping and heat insulation
Use	Various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums, freezing stores and purification workshops
Installation	Convenient and flexible without the large- size lifting devices so that the construction period is limited with the lower comprenhensive costs
Fine fireproof	Test by national quality inspection center for fireproof building material, all its index reach grade A1
Heavy load bearing capacity	High strength and high rigidness and is suitable either for the weight - bearing structure or for the protective structure

    Applicance EPS sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.   Feature sandwich panel has bright color apperance, good overall effect; Owns the high bearing capacity, thermal insulation, fireproof, waterproof,soundproof function etc; Widely used in the construction buildings,such as office, warehouse, workshop...   1) light weight,anti-rust 2) fast installation,save time 3) fire prevention, can satisfy the fire code requirements. 4) fireproof, every ten years spraying coatings, plank life expectancy of 35 years 5) beautiful, corrugated steel sheet clear line up to dozens of color, can cooperate with any style of building needs 6) thermal insulation             7) environmental protection prevents noise insulation intensity can reach, composite 40-50 db, is very effective sound insulation materials. 8) we can design for you and send engineers to you 9) we will give you the best quality with the best price   Packaging & Shipping Our Services   FAQ 1.What's the minimium quantity?    100 meters (for common color grey white,blue and red color,common thickness 0.3mm-0.6mm)
   1000 meters (for special color such as RAL card number,common thickness =<0.3mm,or >=0.6mm)   2.What's your best price?
    Depend on the thickness,color and total quantity you need.More quantity,better price.   3.How long can you make?
   Our machine can cut any length as customized,max.length to be placed into container for ship is 11800mm   4.What's your package?
   Generally directly load into container,also can package as your special request.   5.Quality guarantee
    Accept third party check,after your inspect the goods in our factory,then delivery   6.What's your delivery time?
    Within 10 working days,if more quantity or special specification need to negotiate the time between us.   7.What term do you deal?
    FOB,CIF,CNF C&F,as request.   8.After-sale service
    If there is any damage during transport from our factory to Tianjin port,we can replace new product for free.   9.Can you offer technical support?
    Of course,we can offer installation manual,or send our technician to help installation at your site.
